SN74S09NSR

四路2输入正与门与集电极开路输出 QUADRUPLE 2-INPUT POSITIVE-AND GATES WITH OPEN-COLLECTOR OUTPUTS

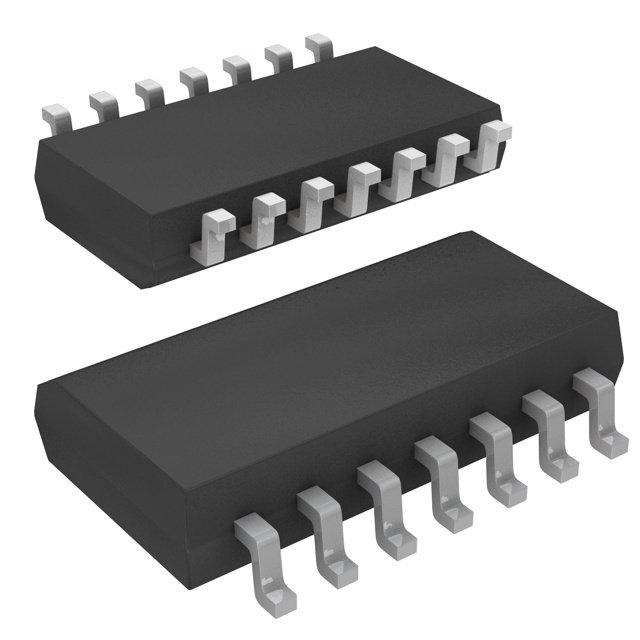

AND Gate IC 4 Channel Open Collector 14-SOP

立创商城:
SN74S09NSR

德州仪器TI:
4-ch, 2-input, 4.75-V to 5.25-V bipolar AND gates with open-collector outputs

得捷:
IC GATE AND OP COL 4CH 2IN 14SOP

贸泽:
Logic Gates Quad 2-input Positive-AND Gate

艾睿:
Texas Instruments brings you their latest SN74S09NSR logic gates, from which you can build and implement logical functions. With an open collector output, this is power management at its best. This gate has an operating temperature range of 0 °C to 70 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.

Chip1Stop:
AND Gate 4-Element 2-IN Bipolar 14-Pin SOP T/R

Verical:
AND Gate 4-Element 2-IN Bipolar 14-Pin SOP T/R
