SM16LC12C

TVSarray系列 TVSarray Series

DESCRIPTION 300 watt

This 16 pin 8 line Low Capacitance Bidirectional array is designed for use in applications where protection is required at the board level from voltage transients caused by electrostatic discharge ESD as defined in IEC 1000-4-2, electrical fast transients EFT per IEC 1000-4-4 and effects of secondary lighting.

These TRANSIENT VOLTAGE SUPPRESSOR TVS Diode Arrays have a peak power of 300 watts for an 8/20  msec pulse and are designed to protect 3.0/3.3 volt components such as DRAM’s, SRAM’s,  CMOS,  HCMOS,  HSIC, and low voltage interfaces up to 24 volts.

FEATURES

·  Protects 3.0/3.3 up through 24V Components

·  Protects 8 lines Bidirectional

·  Provides electrically isolated protection

·  SO-16 Packaging

MECHANICAL

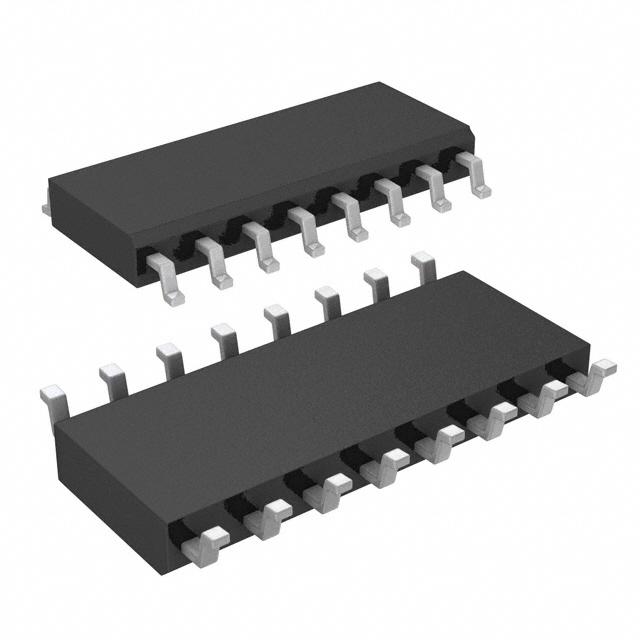

· Molded SO-16 Surface Mount

· Weight: 0.128 grams approximate

· Body Marked with Logo, and device number

· Pin #1 defined by DOT on top of package

· Encapsulation meets UL 94V-0
