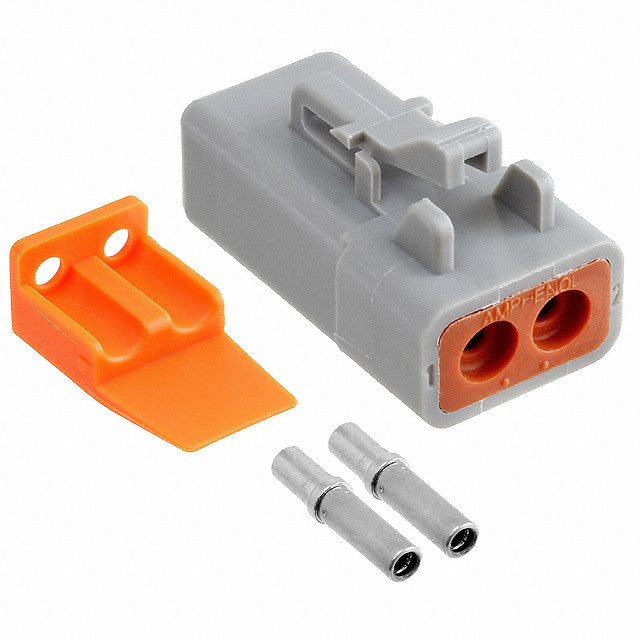

ATP06-2S-KIT01

Connector: wire-wire; ATP; plug; female; Size:12; 14÷12AWG; PIN:2

ATP Series™ connectors are designed as a high-performance, cost-effective, thermoplastic solution to be used within the Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy fields, as well as other demanding interconnect applications. Available in 2 and 4 position options, the ATP Series™ Connectors contain superior environmental seals, seal retention capabilities and are designed for use with 10-14AWG with size 12 contacts handling up to 25A.

ATP Series™ connectors are compatible with other existing standard products industry-wide.

* Amps: 25

* AWG: 10-14

* Color: Grey/ Orange

* Contact Size: 12

* Contact type: Pin & Socket

* Dielectric Value: 1500V minimum

* Housing Material: Thermoplastic

* Insulation Resistance: 1000 megohms at 25°C

* IP Rating: IP67

* Mating Cycle Durability: >100

* Positions: 2-Way

* Seal Material: Silicone Rubber

* Temperature Range: -55°C TO +125°C

* Wire Range: 10-14 AWG
