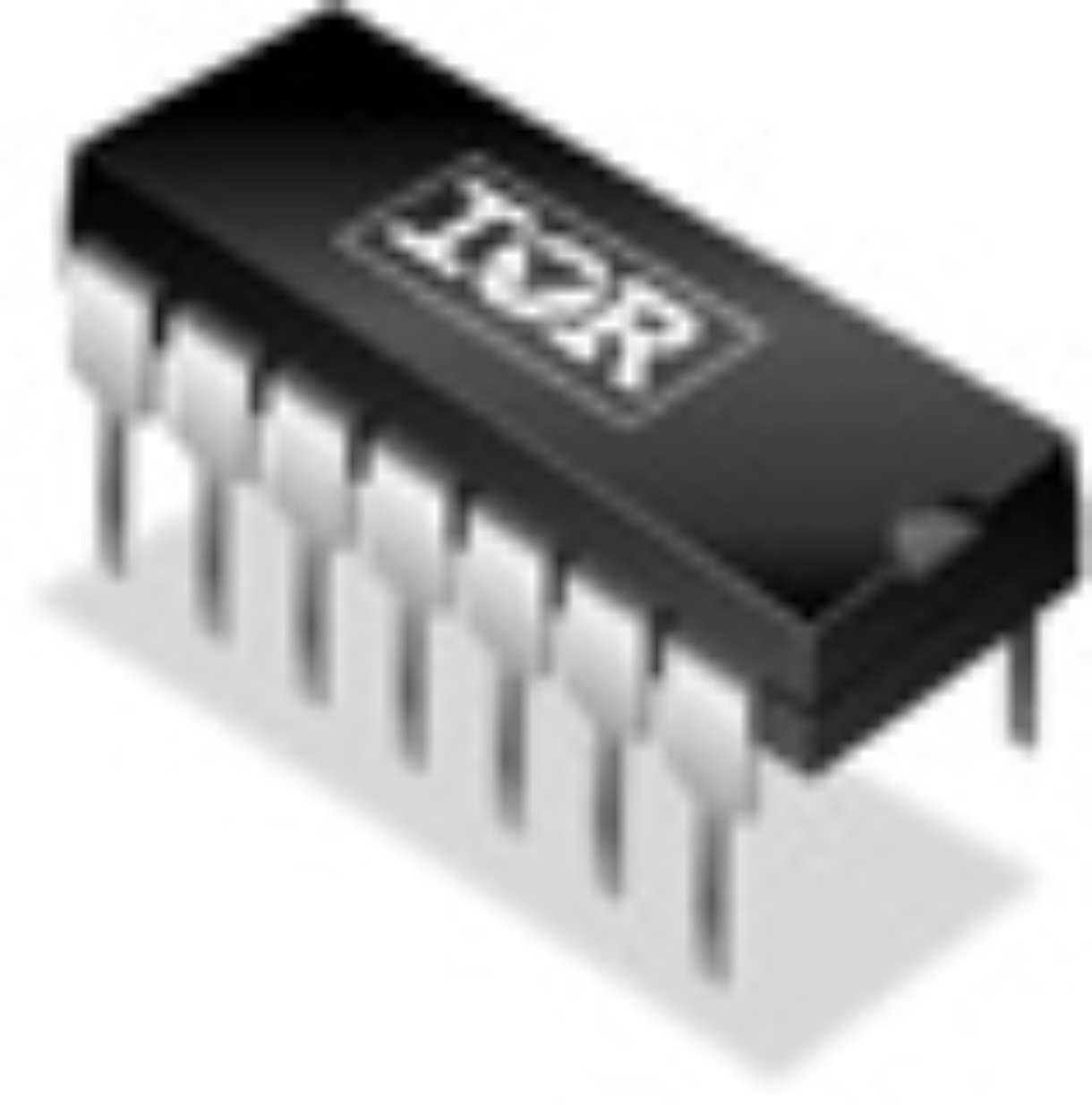

IR2110

MOSFET DRVR 500V 2.5A 2Out Hi/Lo Side Non-Inv 14Pin PDIP

* Floating channel designed for bootstrap operation * Fully operational to +500V or +600V * Tolerant to negative transient voltage * dV/dt immune * Gate drive supply range from 10 to 20V * Undervoltage lockout for both channels * 3.3V logic compatible * Separate logic supply range from 3.3V to 20V * Logic and power ground ±5V offset * CMOS Schmitt-triggered inputs with pull-down * Cycle by cycle edge-triggered shutdown logic * Matched propagation delay for both channels * Outputs in phase with inputs
