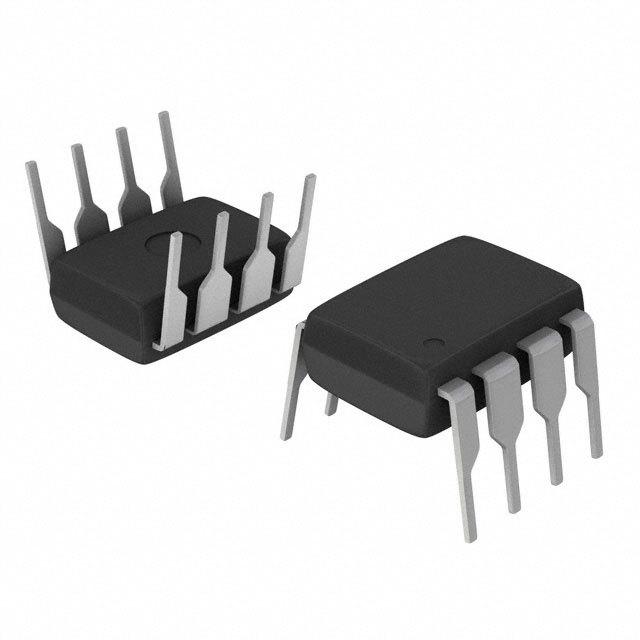

S12MD1

Photothyristor Coupler

■ Features

1\. High RMS ON-state current IT : MAX.200mA rms

2\. High repetitive peak OFF-state voltage VDRM : MIN. 400V

3\. Trigger current I FT : MAX. 15mA at R G = 20kΩ

4\. For half-wave control •••V

     For full-wave control ••• S12MD3

      ❈ S12MD1V and S12MD3 are for 100V line

5\. Recognized by UL, file No. E64380

■ Applications

1\. ON-OFF operation for a low power load

2\. For triggering high power thyristor and triac
