IR2104

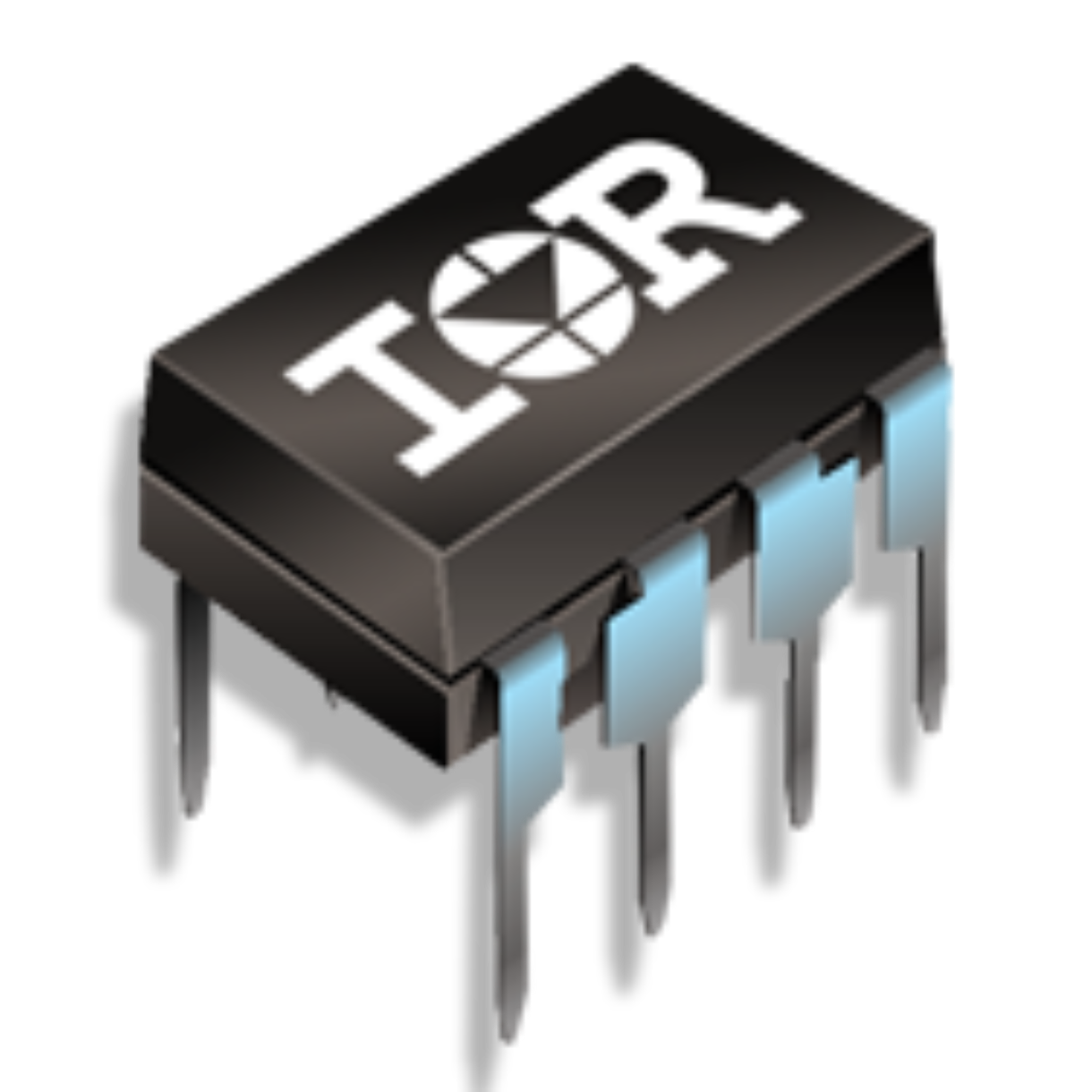

600V Half Bridge Driver IC with typical 0.21A source and 0.36A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC.
Summary of Features:
- .
- Floating channel designed for bootstrap operation
- .
- Fully operational to +600 V
- .
- Tolerant to negative transient voltage
- .
- dV/dt immune
- .
- Gate drive supply range from 10 to 20 V
- .
- Undervoltage lockout
- .
- 3.3 V, 5 V, and 15 V logic input compatible
- .
- Cross-conduction prevention logic
- .
- Matched propagation delay for both channels
- .
- Internal set deadtime
- .
- High side output in phase with HIN input
- .
- Shut down input turns off both channels
- .
- Matched propagation delay for both channels
