TPS54160DGQRG4

1.5 -A ， 60 -V ，降压SWIFT DC / DC具有Eco-Mode转换器 1.5-A, 60-V, STEP-DOWN SWIFT DC/DC CONVERTER WITH ECO-MODE

DESCRIPON

The TPS54160 device is a 60-V, 1.5-A, step down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 mA. Using the enable pin, shutdown supply current is reduced to 1.3 mA.

FEATURES

• 3.5-V to 60-V Input Voltage Range

• 200-mΩ High-Side MOSFET

• High Efficiency at Light Loads with a Pulse Skipping Eco-Mode™

• 116-mA Operating Quiescent Current

• 1.3-mA Shutdown Current

• 100-kHz to 2.5-MHz Switching Frequency

• Synchronizes to External Clock

• Adjustable Slow Start/Sequencing

• UV and OV Power Good Output

• Adjustable UVLO Voltage and Hysteresis

• 0.8-V Internal Voltage Reference

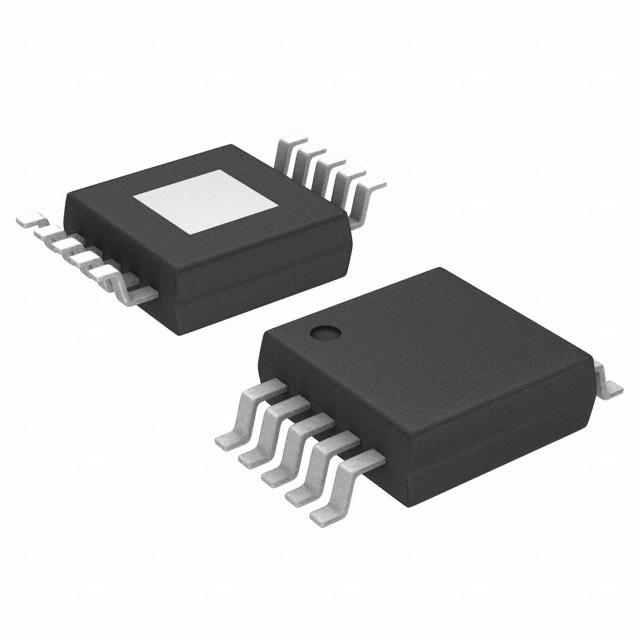

• MSOP-10 Package With PowerPAD™

• Supported by SwitcherPro™ Software Tool

APPLICATIONS

• 12-V, 24-V and 48-V Industrial and Commercial Low Power Systems

• Aftermarket Auto Accessories: Video, GPS, Entertainment
