TLE4209A

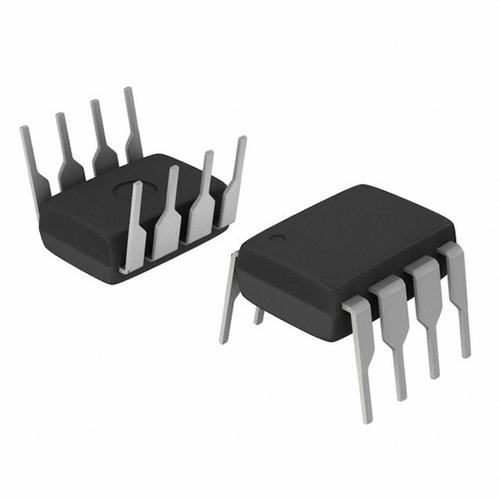

INFINEON  TLE4209A  芯片, 半桥式驱动器, 800mA, DIP8

The is a fully protected H-bridge Driver built using bi-polar high voltage power technology DOPL. The servo-loop-parameter positive and negative hysteresis/dead-band and angle-amplification are programmable with external resistors. An internal window-comparator controls the input line. In the case of a fault condition, like short-circuit to GND, short-circuit to supply-voltage and broken wire, the driver stops the motor immediately.

.

Output protected against short-circuit

.

Over-temperature protection with hysteresis

.

Over and under-voltage lockout

.

No crossover-current

.

Internal clamp diodes
