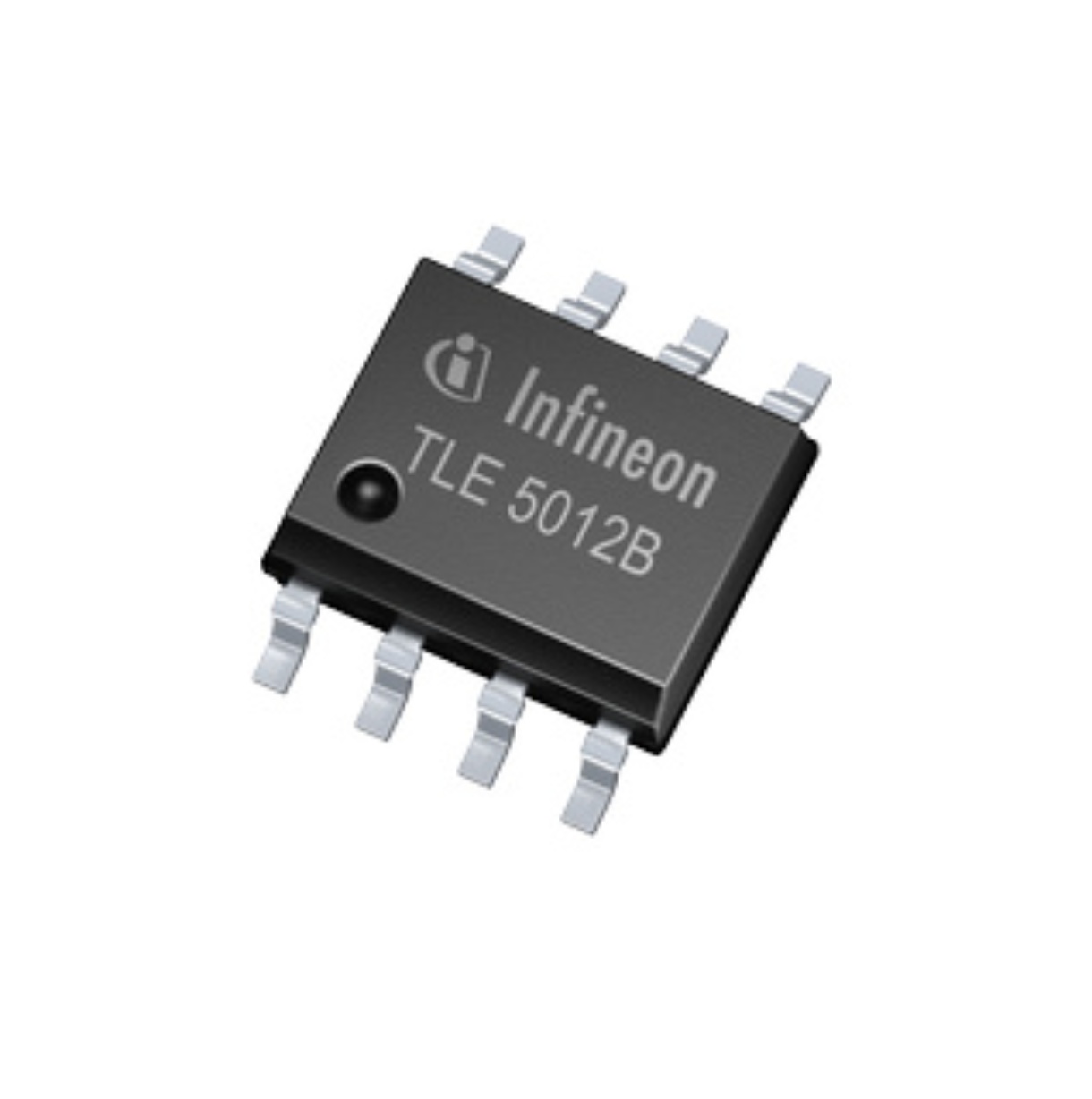

TLE5012B E3005

RotaryPosition Sensor 5.5V 8Pin DSO Tape and Reel

Description:

The TLE5012B is a 360° angle sensor that detects the orientation of a magnetic field. This is achieved by measuring sine and cosine angle components with monolithic integrated Giant Magneto Resistance iGMR elements. Highly precise angle values are determined over a wide temperature range and a long lifetime using an internal autocalibration algorithm. Data communications are accomplished with a bi-directional Synchronous Serial Communication SSC that is SPI-compatible. The absolute angle value and other values are transmitted via SSC or via a Pulse-Width-Modulation PWM Protocol. The sine and cosine raw values can also be read out. These raw signals are digitally processed internally to calculate the angle orientation of the magnetic field magnet. The TLE5012B is a pre-calibrated sensor. The calibration parameters are stored in laser fuses. At start-up the values of the fuses are written into flip-flops, where these values can be changed by the application-specific parameters. Online diagnostic functions are provided to ensure reliable operation.

Summary of Features:

.

Giant Magneto Resistance GMR-based principle

.

Integrated magnetic field sensing for angle measurement

.

Full calibrated 0 - 360° angle measurement with revolution counter and angle speed measurement

.

Two separate highly accurate single bit SD-ADC

.

15 bit representation of absolute angle value on the output resolution of 0.01°

.

16 bit representation of sine / cosine values on the interface

.

Max. 1.0° angle error over lifetime and temperature-range with activated auto-calibration

.

Bi-directional SSC Interface up to 8Mbit/s

.

Supports Safety Integrity Level SIL with diagnostic functions and status information

.

Interfaces: SSC, PWM, Incremental Interface IIF, Hall Switch Mode HSM, Short PWM Code SPC

.

0.25 μm CMOS technology

.

Automotive qualified: -40°C to 150°C junction temperature

.

ESD > 4kV HBM

.

RoHS compliant Pb-free package
