SACC-M12FS-4QO-0,75-M

PHOENIX CONTACT  SACC-M12FS-4QO-0,75-M  传感器连接器, PLUSCON I/O Devices and PLC controller Cable Assembly

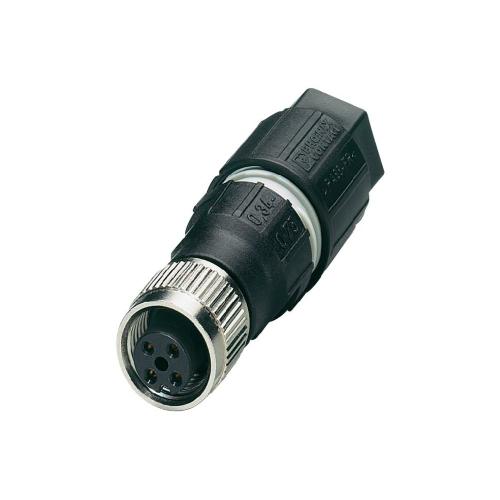

The is a 4-position M12 A-coded sensor/actuator Straight Socket with insulation displacement connection. It has CuSn contacts, TPU contact carrier and PA 6 polyamide 6 grip body.

.

Nickel-plated zinc die-cast knurl

.

Safe use in the field, thanks to a high degree of protection

.

Flexible connector for on-site assembly

.

4A Rated current at 40°C

.

250V Rated voltage

.

>=100MR Insulation resistance

.

0.34 to 0.75mm² Conductor cross section

.

IP65 and IP67 Protection
