PTFA092201EV4R250XTMA1

Trans RF MOSFET N-CH 65V 3Pin Case 36260 T/R

Summary of Features:

.

Broadband internal matching

.

Typical two-carrier WCDMA performance at 960 MHz, 30 V

\- Average output power = 55 W

\- Linear Gain = 18.5 dB

\- Efficiency = 30%

\- Intermodulation distortion = –37 dBc

\- Adjacent channel power = –39 dBc

.

Typical CW performance, 960 MHz, 30 V

\- Output power at P1dB = 250 W

\- Gain = 17.5 dB

\- Efficiency = 59%

.

Integrated ESD protection. Human Body Model, Class 2 minimum

.

Excellent thermal stability, low HCI drift

.

Capable of handling 10:1 VSWR @ 30 V, 220 W CW output power

.

Pb-free, RoHS-compliant

.

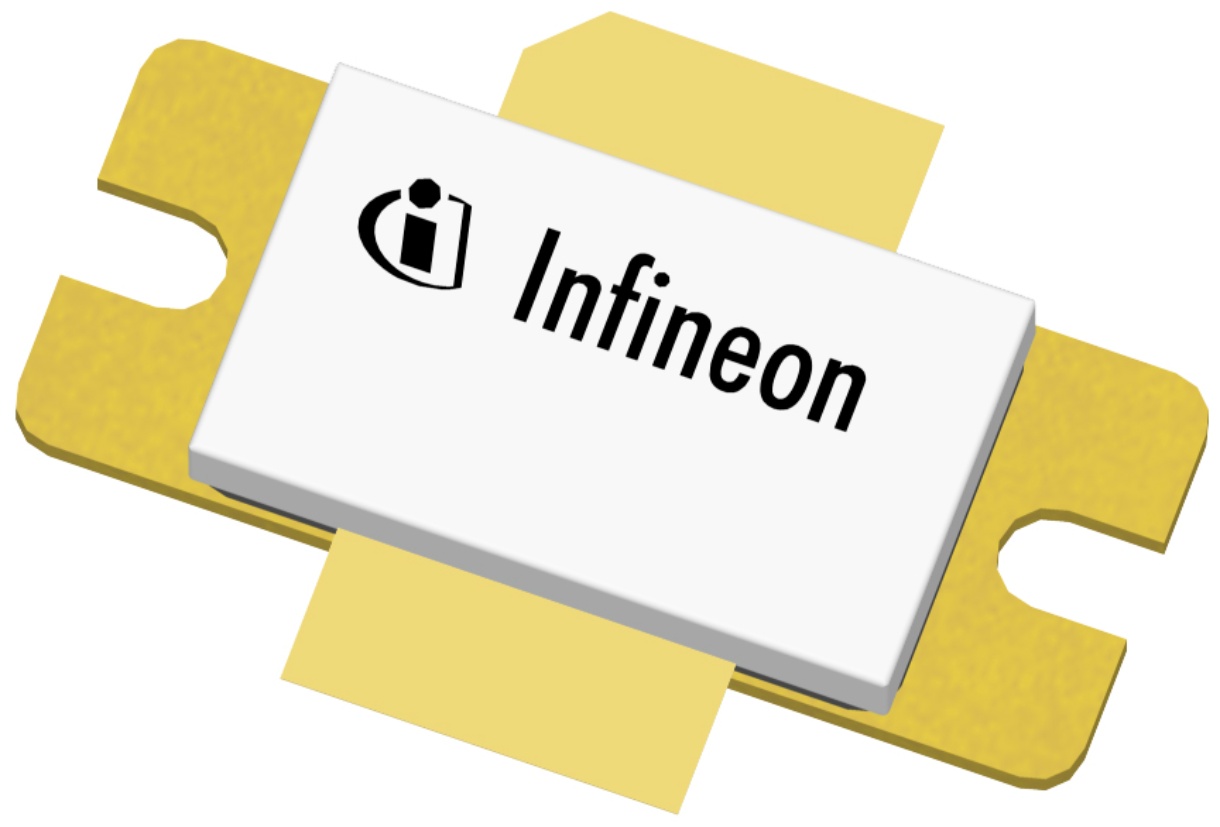

Package: H-36260-2, bolt-down
