FP204

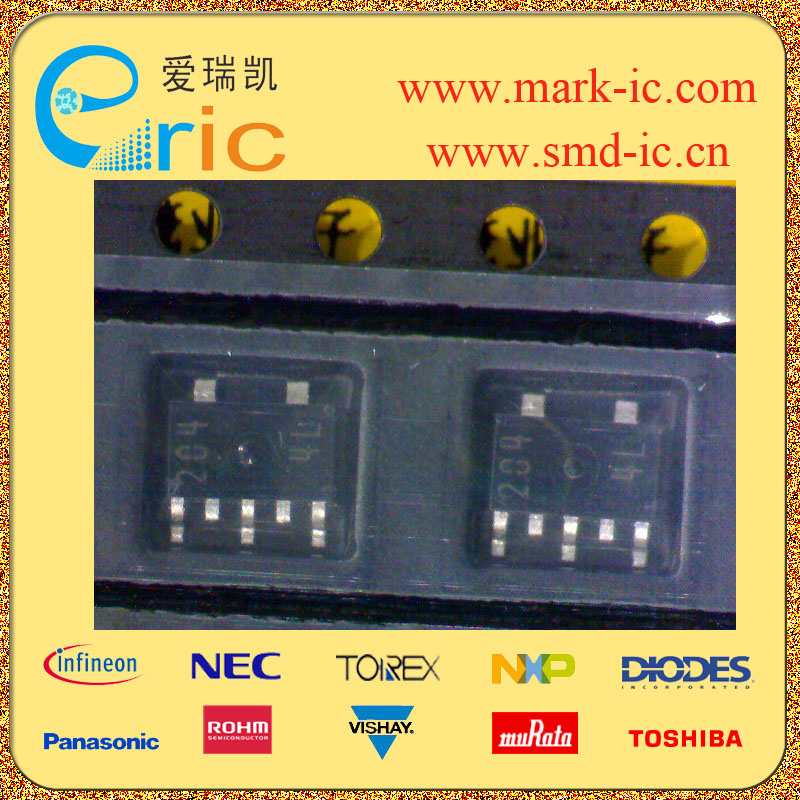

FP204 PNP+NPN复合三极管 -60V/60V -2A/2A 140~400 PCP5 标记204 用于开关/数字电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -60V/60V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V/50V 集电极连续输出电流IC Collector CurrentIC| -2A/2A 截止频率fT Transtion FrequencyfT| 150MHz 直流电流增益hFE DC Current GainhFE| 140~400 管压降VCE（sat） Collector-Emitter Saturation Voltage| -250mV/150mV 耗散功率Pc Power Dissipation| 1100mW Description & Applications| Features • PNP/NPN Epitaxial Planar Silicon Transistor • Push-Pull Circuit Applications • Composite type with a PNP transistor and an NPN transistor in one package, facilitating high-density mounting. • The is composed of 2 chips, one being equivalent to the 2SB1123 and 2SD1623, which are placed in one package. 描述与应用| 特点 •PNP/ NPN平面外延硅晶体管 •推挽电路应用 •复合型与PNP晶体管和一个NPN •在一个封装的晶体管，促进高密度安装。 •FP2042芯片组成，其中之一是相当于2SB1123和2SD1623，这是放置在一个包装。
