RN1603

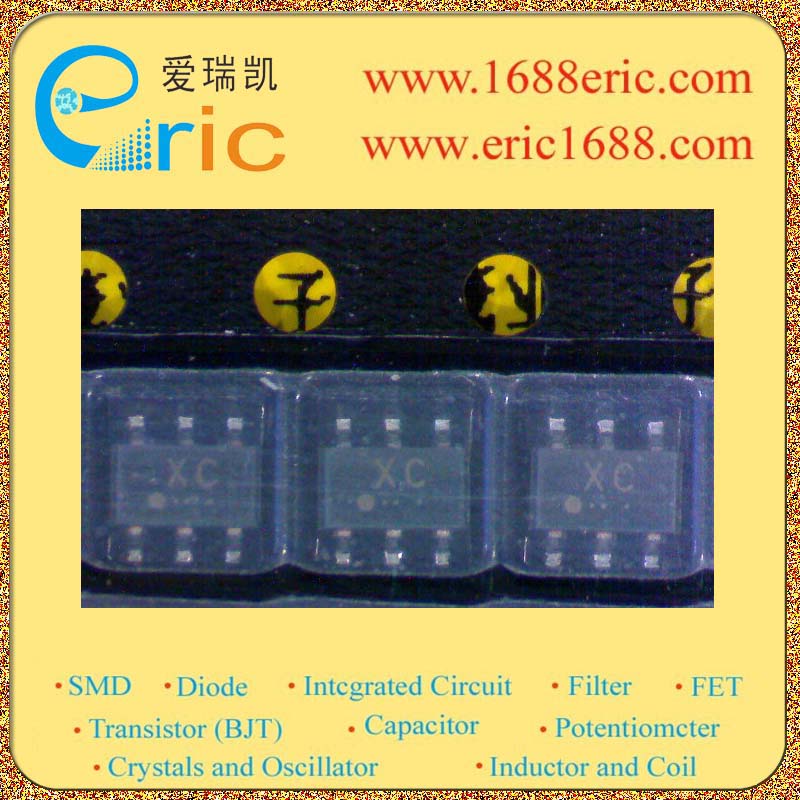

RN1603 NPN+NPN复合带阻尼三极管 50V 100mA 70 300mW/0.3W SOT-163/SM6/SOT23-6 标记XC 开关电路 逆变器 接口电路 驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 50V 集电极连续输出电流IC Collector CurrentIC| 100mA Q1基极输入电阻R1 Input ResistanceR1| 22KΩ/Ohm Q1基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 22KΩ/Ohm Q1电阻比R1/R2 Q1 Resistance Ratio| 1 Q2基极输入电阻R1 Input ResistanceR1| 22KΩ/Ohm Q2基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 22KΩ/Ohm Q2电阻比R1/R2 Q2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 70 截止频率fT Transtion FrequencyfT| 250MHz 耗散功率Pc Power Dissipation| 300mW/0.3W Description & Applications| Features • TOSHIBA Transistor Silicon NPN Epitaxial Type PCT Process Bias Resistor built-in Transistor • Including two devices in SM6 super-mini-type with six 6 leads • With built-in bias resistors • Simplified circuit design • Reduced number of parts and manufacturing process • Complementary to RN2601 to RN2606 APPLICATIONS • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications 描述与应用| 特点 •的硅NPN外延式（PCT的进程）（偏置电阻内置晶体管）包括两个设备在SM6（超迷你型六（6）导致） •借助内置的偏置电阻 •简化电路设计 •数量减少零部件和制造工艺 •互补RN2601 RN2606 应用 •开关，逆变电路，接口电路和驱动器电路应用
