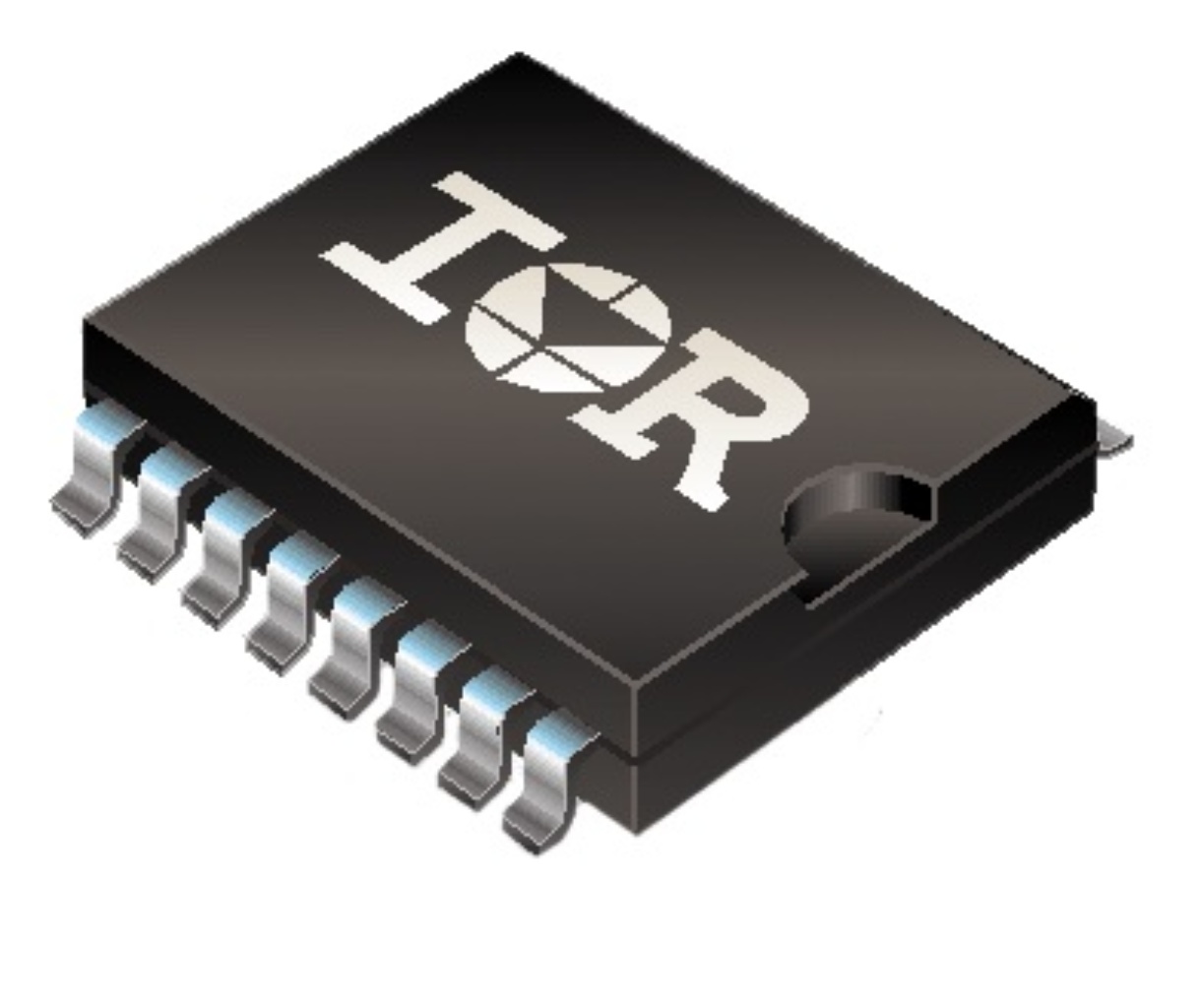

IR2113S
Driver 600V 2.5A 2Out Hi/Lo Side Non-Inv 16Pin SOIC W T/R
Summary of Features:
- .
- Floating channel designed for bootstrap operation
- .
- Fully operational to +600 V
- .
- Fully operational to +500 V version available IR2110
- .
- Tolerant to negative transient voltage
- .
- dV/dt immune
- .
- Gate drive supply range from 10 to 20 V
- .
- Undervoltage lockout for both channels
- .
- 3.3 V logic compatible
- .
- Separate logic supply range from 3.3 V to 20 V
- .
- Logic and power ground +/- 5 V offset
- .
- CMOS Schmitt-triggered inputs with pull-down
- .
- Cycle by cycle edge-triggered shutdown logic
- .
- Matched propagation delay for both channels
- .
- Outputs in phase with inputs
