IR2106

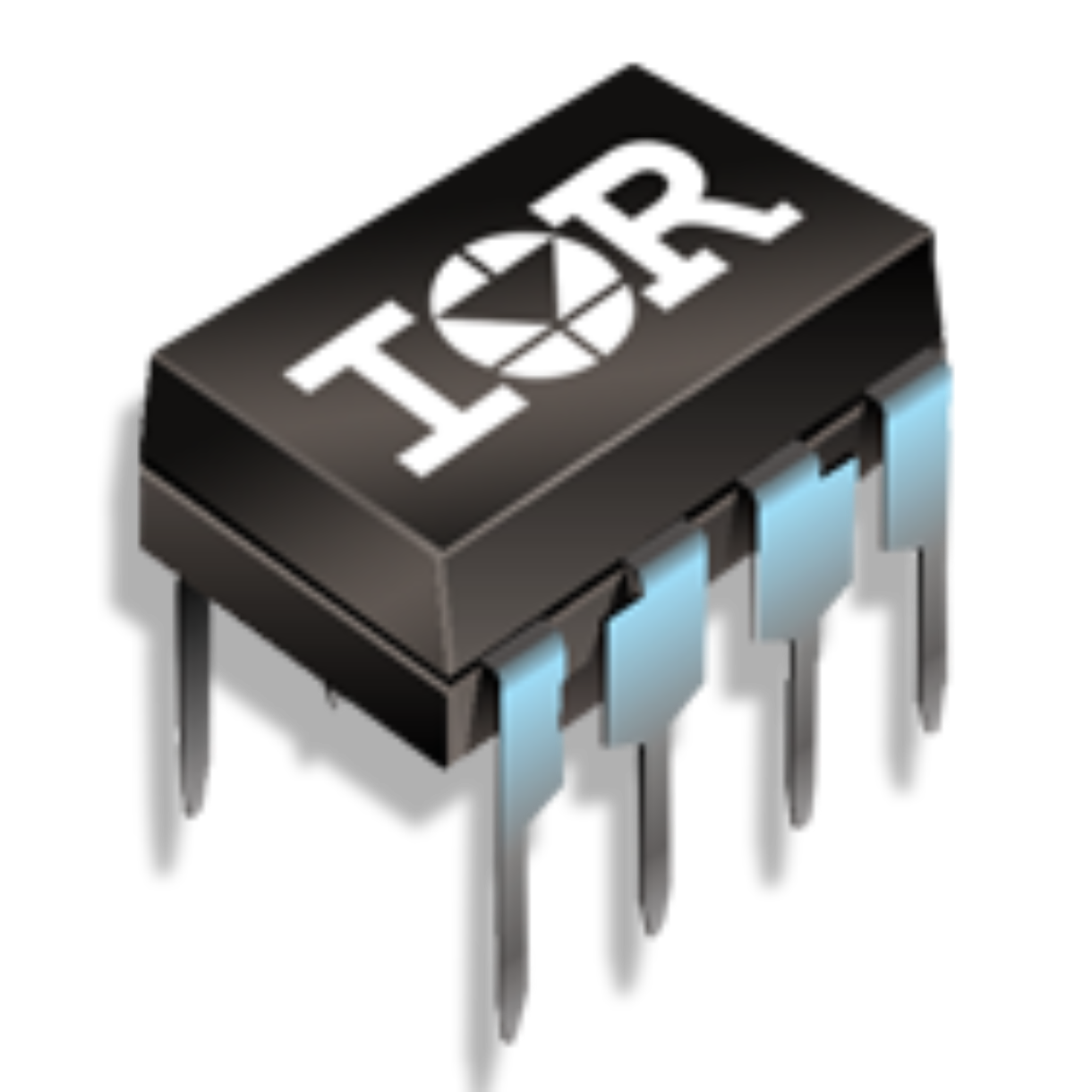

600V High and Low Side Driver IC with typical 0.2A source and 0.35A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC, 14 Lead SOIC, and 14 Lead PDIP.
Summary of Features:
- .
- Floating channel designed for bootstrap operation
- .
- Fully operational to +600 V
- .
- Tolerant to negative transient voltage
- .
- dV/dt immune
- .
- Gate drive supply range from 10 to 20 V
- .
- Undervoltage lockout
- .
- 3.3 V, 5 V, and 15 V logic input compatible
- .
- Matched propagation delay for both channels
- .
- Logic and power ground + /- 5 V offset
- .
- Lower di/dt gate driver for better noise immunity
- .
- Outputs in phase with inputs
