8412N/2GLE-256

EBM PAPST 8412N/2GLE-256 轴流风扇, PC紧凑型, 带连接器, 标准或基础速度, 管套, Compact系列, 12 VDC, 80 mm, 25.4 mm, 19.4 cu.ft/min, 33 m³/h

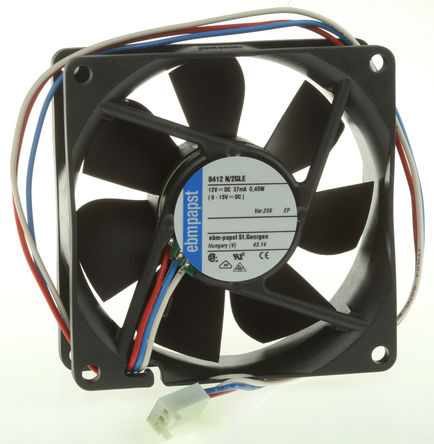

The is a 12VDC 80mm low speed Compact Fan with sleeve bearing and wire leaded power connection. The fan only operates when the polarity is correct, fan of fibreglass reinforced plastic, PBT housing, PA impeller. Air exhaust over struts air flow direction, counter-clockwise direction of rotation looking at rotor. Fitted with 3-pin Molex connector and sensor signal for speed monitoring.

.: 1500RPM Speed rating

.: 0.5W Rated power

.: -20 to 85°C Maximum ambient temperature range

.: Electronic protection against reverse polarity

.: Impedance-protected against locked rotor and overloading

8412N/2GLE-256详细参数

8412N/2GLE-256 PDF数据文档
