ADG904SCPZ-EP

Wideband 2.5GHz, 37dB Isolation at 1GHz, CMOS 1.65V to 2.75V, 4:1 Mux/SP4T

Product Details

The ADG904 and ADG904-R are wideband analog 4:1 multiplexers that use a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG904 is an absorptive/matched mux with 50 Ω terminated shunt legs; the ADG904-R is a reflective mux. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range.

The ADG904 and ADG904-R switch one of four inputs to a common output, RFC, as determined by the 3-bit binary address lines A0, A1, and EN. A Logic 1 on the EN pin disables the device.

The parts have on-board CMOS control logic, which eliminates the need for external control circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these devices makes them ideally suited for wireless applications and general-purpose high frequency switching.

**Product Highlights**

1. −37 dB off isolation at 1 GHz

2. 1.1 dB insertion loss at 1 GHz

3. 20-lead TSSOP/LFCSP packages

**Applications**

.

Wireless communications

.

General-purpose RF switching

.

Dual-band applications

.

High speed filter selection

.

Digital transceiver front end switch

.

IF switching

.

Tuner modules

.

Antenna diversity switching

### Features and Benefits

.

Wideband switch: –3 dB at 2.5 GHz

.

ADG904: absorptive 4:1 mux/SP4T

.

ADG904-R: reflective 4:1 mux/SP4T

.

High off isolation 37 dB at 1 GHz

.

Low insertion loss 1.1 dB dc to 1 GHz

.

Single 1.65 V to 2.75 V power supply

.

CMOS/LVTTL control logic

.

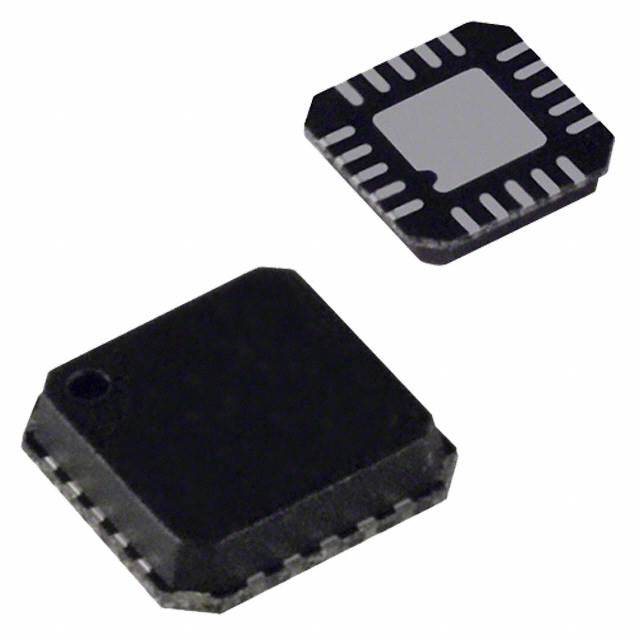

20-lead TSSOP and 4 mm × 4 mm LFCSP packages

.

Low power consumption 1 μA maximum

.

Qualified for automotive applications

** ADG904-EP supports defense and aerospace applications AQEC standard **

.

Download the ADG904-EP data sheet

.

Military temperature range: −55°C to +125°C

.

Controlled manufacturing baseline

.

1 assembly/test site

.

1 fabrication site

.

Enhanced product change notification

.

Qualification data available on request

.

V62/16614 DSCC Drawing Number
