UHE1A222MPD

2.2mF ±20% 10V 1910mA100kHz1910mA Φ10mm

2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C

立创商城:
2200uF ±20% 10V

得捷:
CAP ALUM 2200UF 20% 10V RADIAL

艾睿:

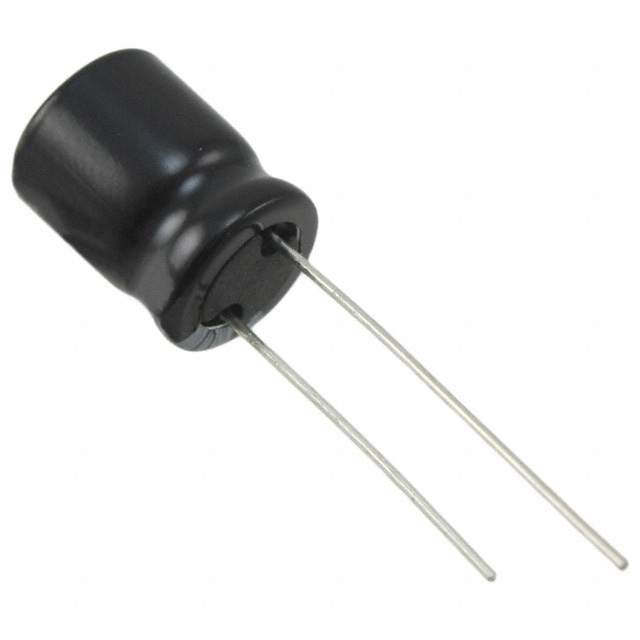

By using pure aluminum foil in the anode, this electrolytic UHE1A222MPD aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHE1A222MPD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 2200uF. This product is 31.5 mm tall with a diameter of 10 mm. Its leakage current is 220@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%.

安富利:
Cap Aluminum 2200uF 10V 20% 10 X 31.5mm Radial Aluminum Cylindrical Can 5mm 1910mA 6000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 2200uF 10V 20% 10 X 31.5mm Radial 5mm 1910mA 6000h 105C Bulk

Newark:
# NICHICON  UHE1A222MPD  Electrolytic Capacitor, Miniature, 2200 µF, 10 V, HE Series, ± 20%, Radial Leaded, 10 mm
