BM2SCQ122T-LBZ

准谐振AC/DC转换器, 1700V SiC-MOSFET, FB OLP闭锁/VCC OVP锁存器, TO220-6M

BM2SCQ12xT-LBZ series is a quasi-resonant AC/DC converter that provides an optimum system for all products which has an electrical outlet. Quasi-resonant operation enables soft switching and helps to keep the EMI low. This IC can be designed easily because it includes the 1700 V/4 A SiC Silicon-Carbide MOSFET. Design with a high degree of flexibility is achieved with current detection resistors as external devices. The burst operation reduces an input power at light load.

.

Long Time Support Product for Industrial Applications

.

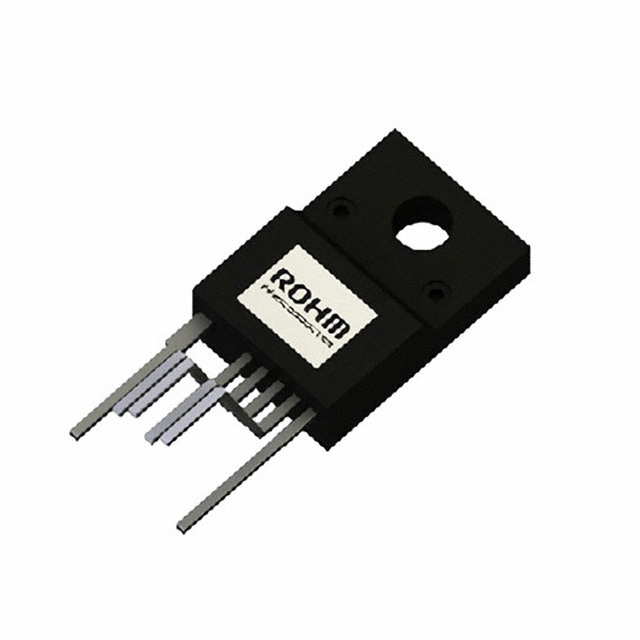

6 Pins: TO220-6M Package

.

Built-in 1700 V/4 A/1.2 Ohm SiC-MOSFET

.

Quasi-resonant Type Low EMI

.

Frequency Reduction Function

.

Low Current Consumption 19 µA during Standby

.

Burst Operation at Light Load

.

SOURCE Pin Leading Edge Blanking

.

VCC UVLO Under Voltage Drop Out protection

.

VCC OVP Over Voltage Protection

.

Over Current Protection Circuit per Cycle

.

Soft Start Function

.

ZT Pin Trigger Mask Function

.

ZT OVP Over Voltage Protection
