3199 06 19

LEGRIS  3199 06 19  气动接头, 母, 弯头, 6 mm, 10.5 mm, M5 x 0.8

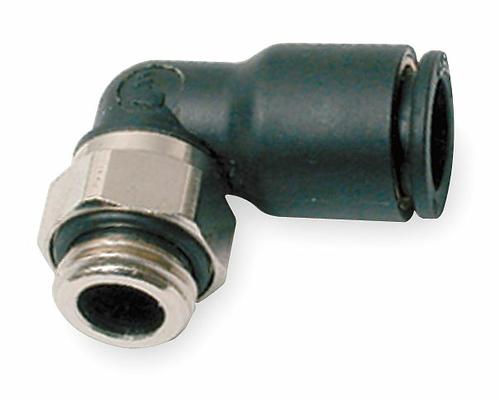

The is a M5 x 0.8 male Stud Elbow with connection of tubing at a 90° angle with a male thread and reduced height dimensions. It has technical polymer body, nickel-plated brass sub-base, NBR O-rings and stainless steel gripping ring. It features solid construction, compact, aesthetic and unobtrusive for better connection.

.

Full air flow

.

755mm Hg Vacuum capability

.

20bar Maximum pressure

.

-20 to 80°C Working temperature range
