TLC59282RGER

TLC59282RGER

TI(德州仪器) 主动器件

16通道恒流LED驱动器, 4通道分组延迟 16-Channel, Constant-Current LED Driver with 4-Channel Grouped Delay

The TLC59282 is a 16-channel, constant-current sink driver. Each channel can be individually controlled via a simple serial communications protocol that is compatible with 3.3 V or 5 V CMOS logic levels, depending on the operating VCC. Once the serial data buffer is loaded, a rising edge on LATCH transfers the data to the LEDx outputs. The BLANK pin can be used to turn off all OUTn outputs during power-on and output data latching to prevent unwanted image displays during these times. The constant-current value of all 16 channels is set by a single external resistor. Multiple TLC59282s can be cascaded together to control additional LEDs from the same processor.

TLC59282RGER中文资料参数规格
技术参数

频率 35 MHz

输出接口数 16

输出电压 17 V

供电电流 34000 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 3V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 24

封装 VQFN-24

外形尺寸

封装 VQFN-24

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

TLC59282RGER引脚图与封装图

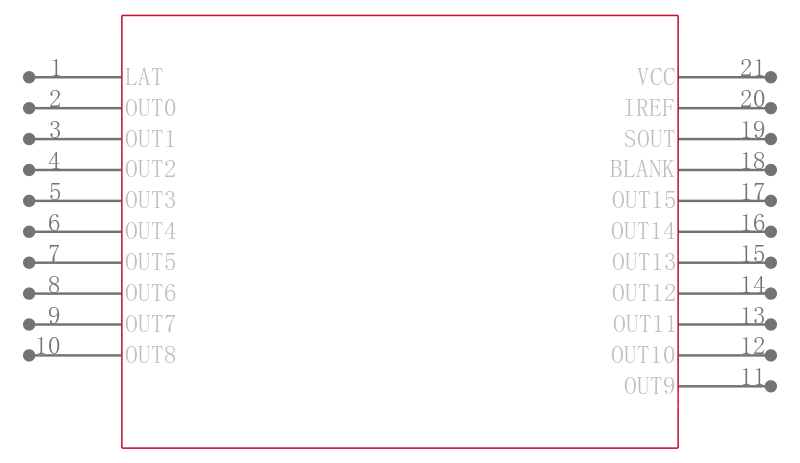

TLC59282RGER引脚图

TLC59282RGER引脚图

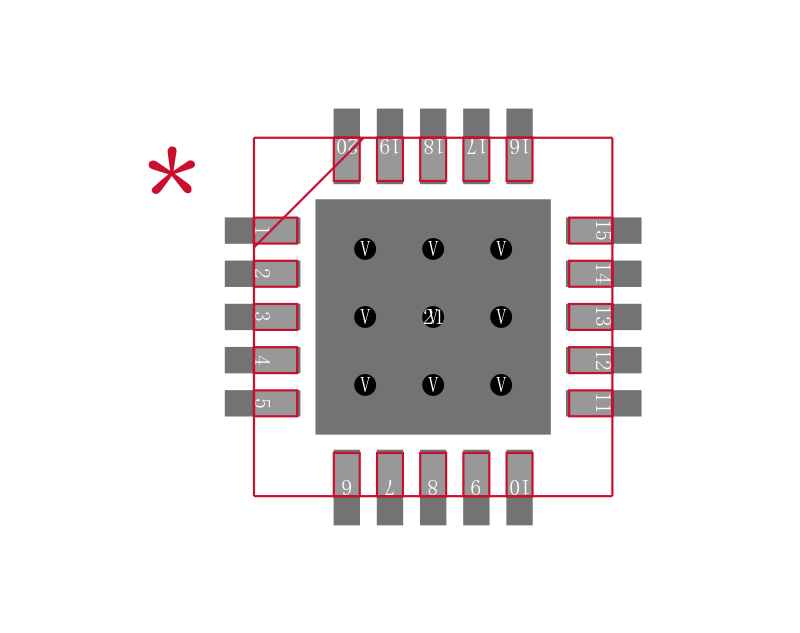

TLC59282RGER封装焊盘图

TLC59282RGER封装焊盘图

在线购买TLC59282RGER
型号 制造商 描述 购买
TLC59282RGER TI 德州仪器 16通道恒流LED驱动器, 4通道分组延迟 16-Channel, Constant-Current LED Driver with 4-Channel Grouped Delay 搜索库存
替代型号TLC59282RGER
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: TLC59282RGER

品牌: TI 德州仪器

封装: VQFN

当前型号

16通道恒流LED驱动器, 4通道分组延迟 16-Channel, Constant-Current LED Driver with 4-Channel Grouped Delay

当前型号

型号: TLC59282RGET

品牌: 德州仪器

封装: VQFN 3V to 5.5V 45mA 16Output

完全替代

TEXAS INSTRUMENTS  TLC59282RGET  发光二极管驱动器, 16输出, 恒流, 3V-5.5V输入, 45mA输出, VQFN-24

TLC59282RGER和TLC59282RGET的区别
