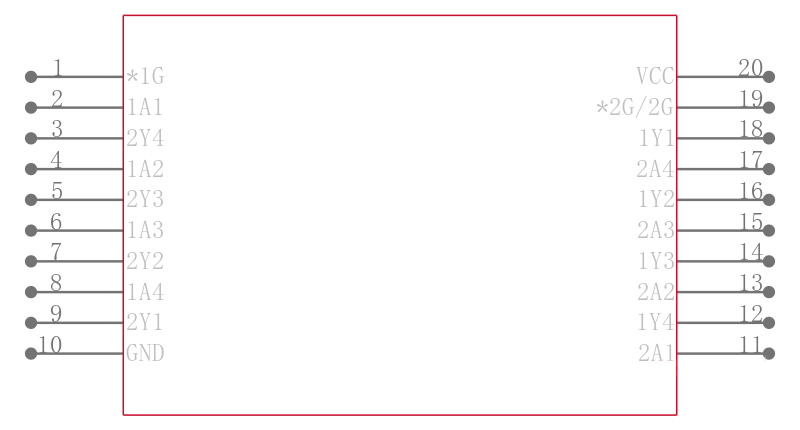

SN74S244DWR
TI(德州仪器)
电子元器件分类
八路缓冲器并用3态输出线路驱动器 OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control G inputs, and complementary output-control G and G inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.
