MSP430F5438AIZQWT

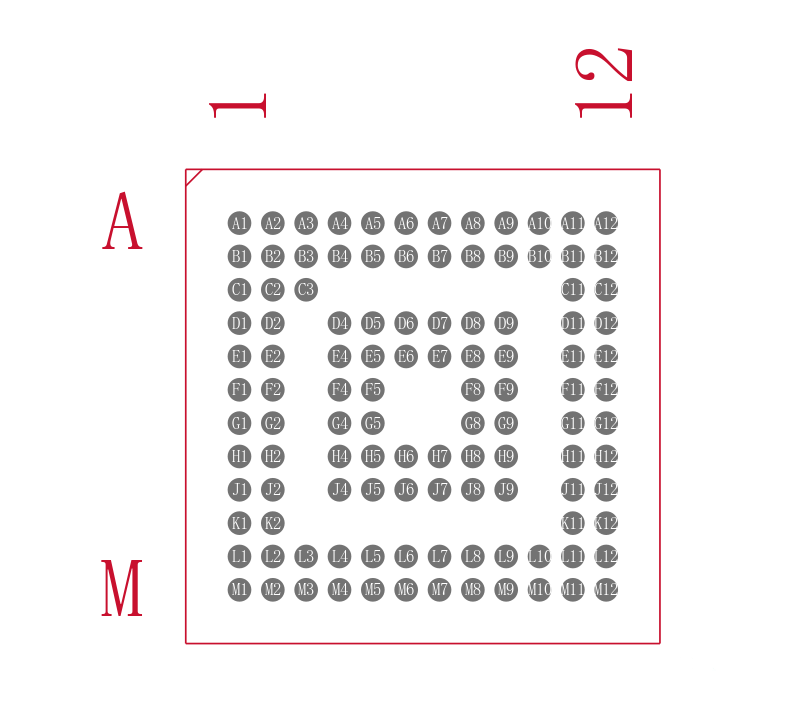

TEXAS INSTRUMENTS MSP430F5438AIZQWT 微控制器, 16位, 混合信号, MSP430F5xx, 25 MHz, 256 KB, 16 KB, 113 引脚, BGA
The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 3.5µs typical. The device configurations with three 16-bit timer, 12-bit A/D converter, three-channel internal DMA, up to four universal serial communication interfaces USCIs, a 32-bit hardware multiplier and 87 general-purpose I/O pins. This device operates at a maximum frequency of 25MHz.
- .
- 16-bit RISC architecture, extended memory, up to 25MHz system clock
- .
- Fully integrated LDO with programmable regulated core supply voltage
- .
- Supply voltage supervision, monitoring and brownout
- .
- FLL Control loop for frequency stabilization
- .
- Low-power low-frequency internal clock source VLO
- .
- Low-frequency trimmed internal reference source REFO
- .
- 32kHz Watch crystals XT1
- .
- High-frequency crystals up to 32MHz XT2
- .
- 16-bit Timer TA0, Timer_A with five Capture/Compare registers
- .
- 16-bit Timer TA1, Timer_A with three Capture/Compare registers
- .
- 16-bit Timer TB0, Timer_B with seven Capture/Compare shadow registers
- .
- Enhanced UART supports auto-baudrate detection
- .
- IrDA Encoder and decoder
- .
- Synchronous SPI
- .
- 12-bit ADC with internal shared reference, sample-and-hold and autoscan feature
- .
- Serial on-board programming
- .
- No external programming voltage needed
- .
- Basic timer with RTC
- .
- 230µA/MHz Active mode AM power consumption
