LM2700MT-ADJ/NOPB
TI(德州仪器)
主动器件
TEXAS INSTRUMENTS LM2700MT-ADJ/NOPB 芯片, 升压直流/直流转换器, PWM, 14-TSSOP
DESCRIPON
The LM2700 is a step-up DC/DC converter with a 3.6A, 80mΩ internal switch and pin selectable operating frequency. With the ability to produce 500mA at 8V from a single Lithium Ion battery, the LM2700 is an ideal part for biasing LCD displays.
FEATURES
• 3.6A, 0.08Ω, Internal Switch
• Operating Input Voltage Range of 2.2V to 12V
• Input Undervoltage Protection
• Adjustable Output Voltage up to 17.5V
• 600kHz/1.25MHz Pin Selectable Frequency Operation
• Over Temperature Protection

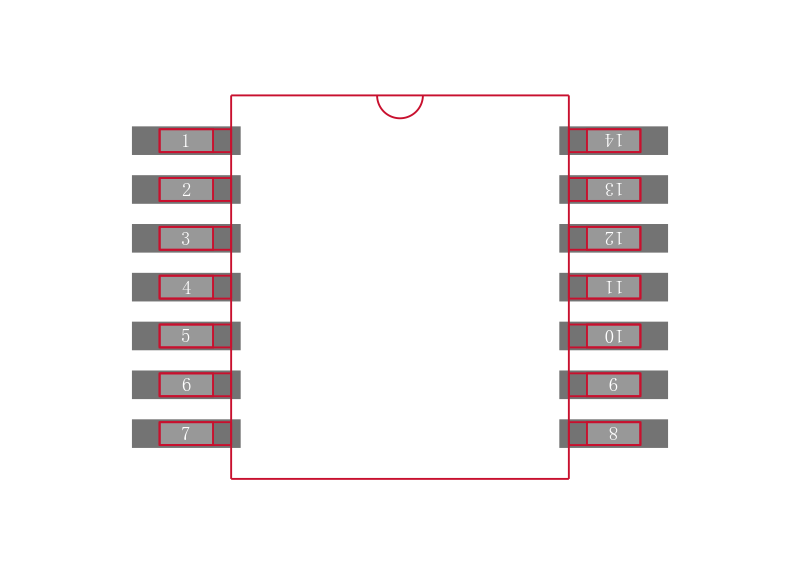

• Small 14-Lead TSSOP or WSON Package
APPLICATIONS
• LCD Bias Supplies
• Handheld Devices
• Portable Applications
• GSM/CDMA Phones
• Digital Cameras
