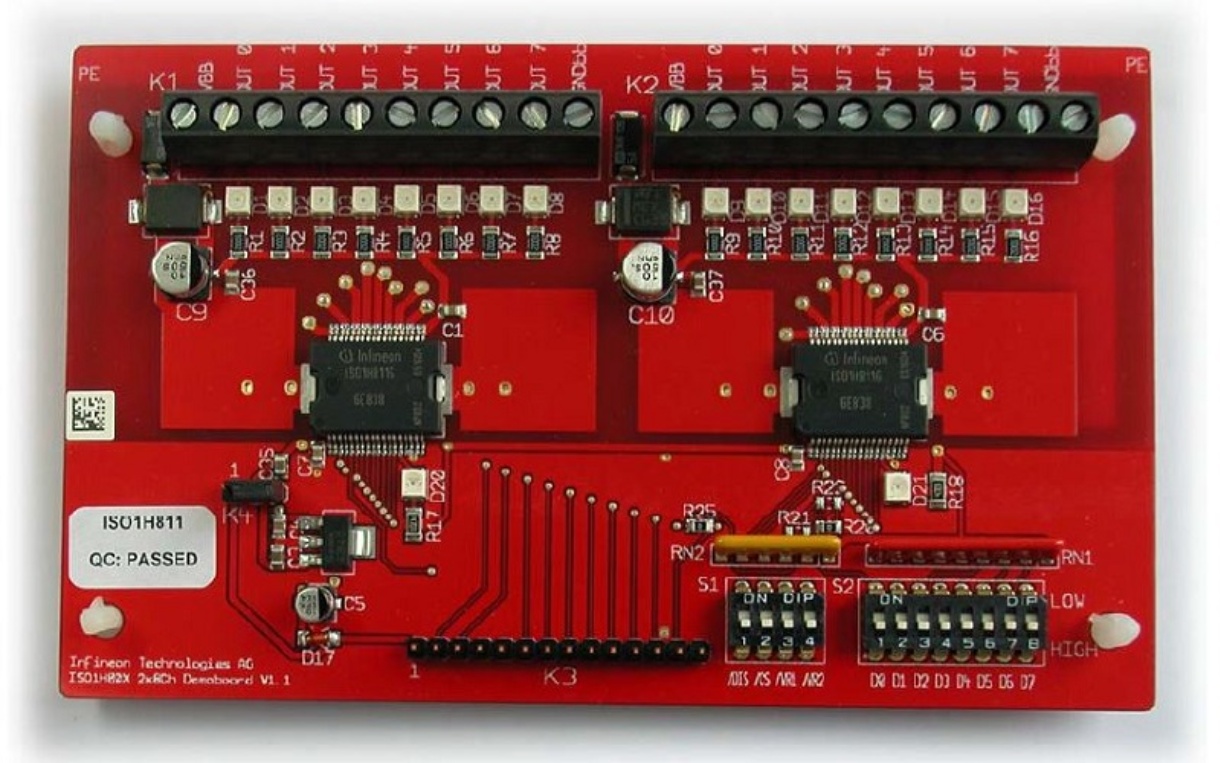

EVALISO1H811GTOBO1

The ISO1H81xG family offers parallel and serial 3.3V/5V μC-interfaces, facilitating straight forward connection with virtually any μC, μP, ASIC or FPGA. The ISO1H81xG products enable OEM-product designs which meet the stringent EMI requirements of the IEC 61131-2 norm zone C applicable for Programmable Logical Controllers PLC.

Summary of Features:

.

Robust galvanic isolation UL508 and EN 611312 certified to protect the 3.3V/5V control domain of an industrial control system from the harsh 24V typ. process side „8channel highside powerswitching capabilities of up to 1.2A per channel

.

Active current limitation and over temperature protection

.

Common diagnostic feedback for overtemperature and for Vbb undervoltage
