ISPLSI2064E-100LT100

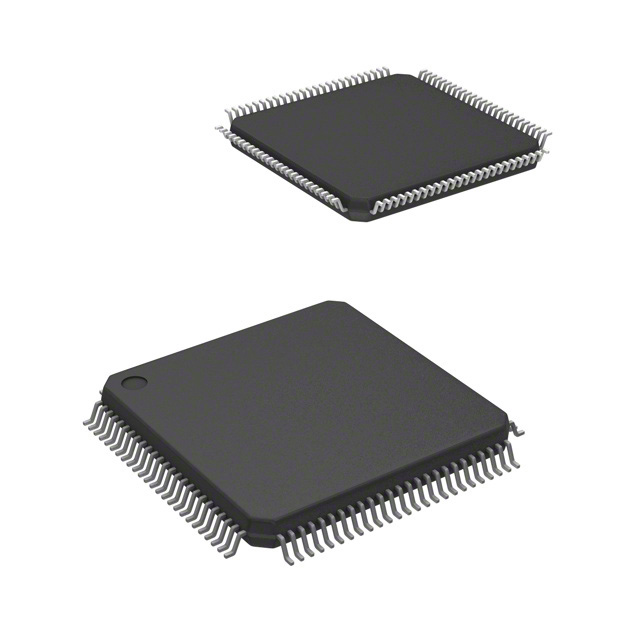

IC CPLD 64MC 10NS 100TQFP

Description

The ispLSI 2064E is a High Density Programmable Logic Device. The device contains 64 Registers, 64 Universal I/O pins, four Dedicated Input Pins, three Dedicated Clock Input Pins, two dedicated Global OE input pins and a Global Routing Pool GRP. The GRP provides complete interconnectivity between all of these elements. The ispLSI 2064E features 5V in-system programmability and in-system diagnostic capabilities. The ispLSI 2064E offers non-volatile reprogrammability of the logic, as well as the interconnect to provide truly reconfigurable systems.

Features

• SuperFAST HIGH DENSITY IN-SYSTEM PROGRAMMABLE LOGIC

   — 2000 PLD Gates

   — 64 I/O Pins, Four Dedicated Inputs

   — 64 Registers

   — High Speed Global Interconnect

   — Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.

   — Small Logic Block Size for Random Logic

   — 100% Functionally and JEDEC Upward Compatible with ispLSI 2064 Devices

• HIGH PERFORMANCE E2CMOS® TECHNOLOGY

   — fmax = 200 MHz Maximum Operating Frequency

   — tpd = 4.5 ns Propagation Delay

   — TTL Compatible Inputs and Outputs

   — 5V Programmable Logic Core

   — ispJTAG™ In-System Programmable via IEEE 1149.1 JTAG Test Access Port

   — User-Selectable 3.3V or 5V I/O Supports Mixed Voltage Systems

   — PCI Compatible Outputs

   — Open-Drain Output Option

   — Electrically Erasable and Reprogrammable

   — Non-Volatile

   — Unused Product Term Shutdown Saves Power

• ispLSI OFFERS THE FOLLOWING ADDED FEATURES

   — Increased Manufacturing Yields, Reduced Time-toMarket and Improved Product Quality

   — Reprogram Soldered Devices for Faster Prototyping

• OFFERS THE EASE OF USE AND FAST SYSTEM SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY OF FIELD PROGRAMMABLE GATE ARRAYS

   — Complete Programmable Device Can Combine Glue Logic and Structured Designs

   — Enhanced Pin Locking Capability

   — Three Dedicated Clock Input Pins

   — Synchronous and Asynchronous Clocks

   — Programmable Output Slew Rate Control to Minimize Switching Noise

   — Flexible Pin Placement

   — Optimized Global Routing Pool Provides Global Interconnectivity

• ispDesignEXPERT™ – LOGIC COMPILER AND COMPLETE ISP DEVICE DESIGN SYSTEMS FROM HDL SYNTHESIS THROUGH IN-SYSTEM PROGRAMMING

   — Superior Quality of Results

   — Tightly Integrated with Leading CAE Vendor Tools

   — Productivity Enhancing Timing Analyzer, Explore Tools, Timing Simulator and ispANALYZER™

   — PC and UNIX Platforms
