LQP03TG0N6B02D

600pH ±0.1nH 850mA 编带

0.6nH Unshielded Thick Film Inductor 850mA 80mOhm Max 0201 0603 Metric

立创商城:
0.6nH ±0.1nH 80mΩ

得捷:
FIXED IND 0.6NH 850MA 80MOHM SMD

艾睿:

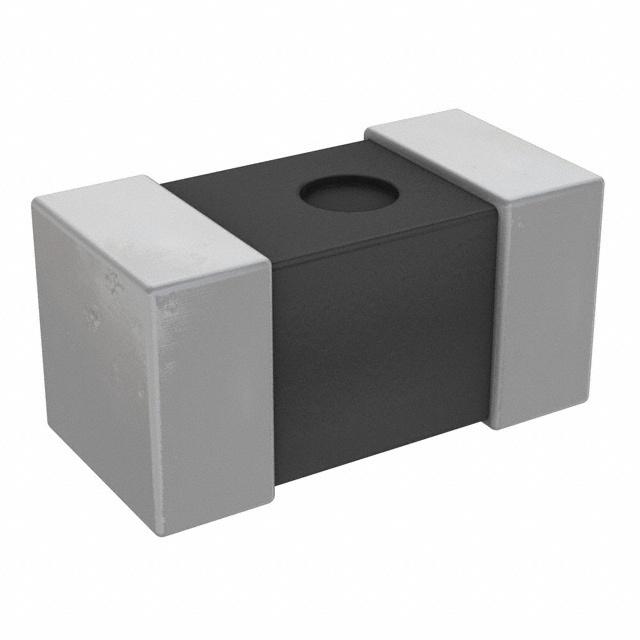

This general purpose chip LQP03TG0N6B02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 18G Hz. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 80m Ohm. It has an inductance of 0.6n H. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This device is made with thin film technology.

安富利:
Ind RF Chip Molded Thin Film 0.6nH 0.1nH 500MHz 11Q-Factor 850mA 0201 Paper T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0006uH 0.1nH 500MHz 11Q-Factor Non Magnetic 0.85A 0.08Ohm DCR 0201 T/R

Win Source:
FIXED IND 0.6NH 850MA 80MOHM SMD / 0.6 nH Unshielded Thick Film Inductor 850 mA 80mOhm Max 0201 0603 Metric
