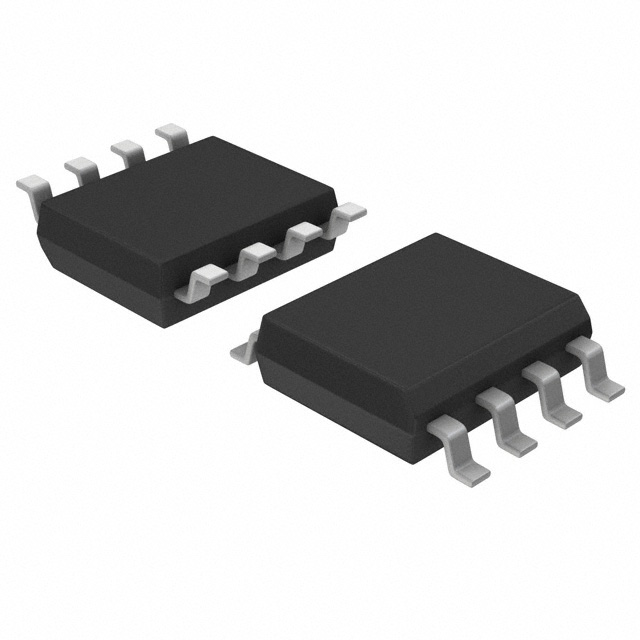

U2044B-MFPY

Dual Output Flasher

Description

The integrated circuit U2044B is used in relay-controlled automotive flashers. With two output stages, each side of the vehicle iscontrolled separately. A left and a right direction indicator input with only a small control current makes switch contacts for small loads possible.

The separate hazard warning input simplifies the construction of the hazard switch. Lamp outage is indicated by frequency doubling during direction mode. Thanks to extreme low current consumption the U2044B can be directly connected to the battery.

Features

• Temperature and Supply Voltage Compensated Flashing Frequency

• Frequency Doubling Indicates Lamp Outage

• Two Relay Driver Outputs with High Current-carrying Capacity and Low Saturation Volt age

• Minimum Lamp Load for Flasher Operation: ≥1W

• Very Low Susceptibility to EMI

• Protection According to ISO/TR7637/1 Level 4

• Extremely Low Current Consumption < 10 µA with Switches Open

• Reverse Polarity Protection

• Three Control Inputs: Left, Right and Hazard Warning
