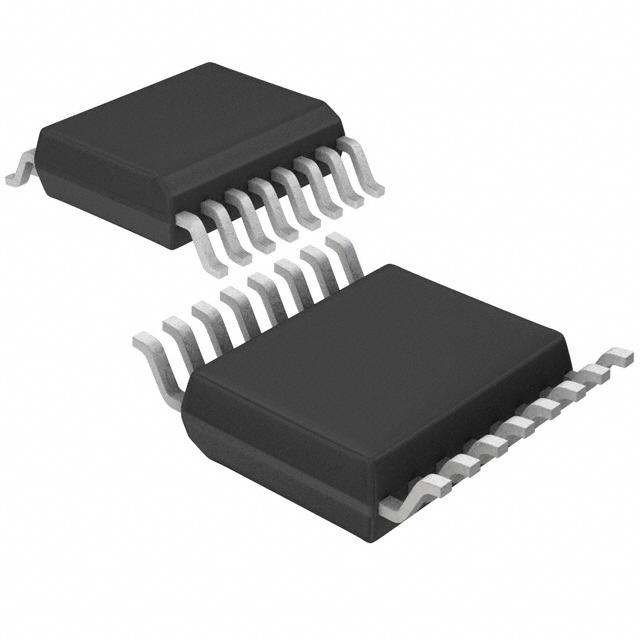

DG411LDQ-E3

精密单片四路SPST低电压CMOS模拟开关 Precision Monolithic Quad SPST Low-Voltage CMOS Analog Switches

DESCRIPTION

The DG411L/412L/413L are low voltage pin-for-pin compatible companion devices to the industry standard DG411/412/413 with improved performance.

Using BiCMOS wafer fabrication technology allows theDG411L/412L/413L to operate on single and dual supplies. Single supply voltage ranges from 3 to 12 V while dual supply operation is recommended with ± 3 to ± 6 V.

FEATURES

• 2.7- thru 12 V Single Supply or ± 3- thru ± 6 Dual Supply

• On-Resistance - rDSon: 17 Ω

• Fast Switching - tON: 19 ns

\- tOFF: 12 ns

• TTL, CMOS Compatible

• Low Leakage: 0.25 nA

• 2000 V ESD Protection
