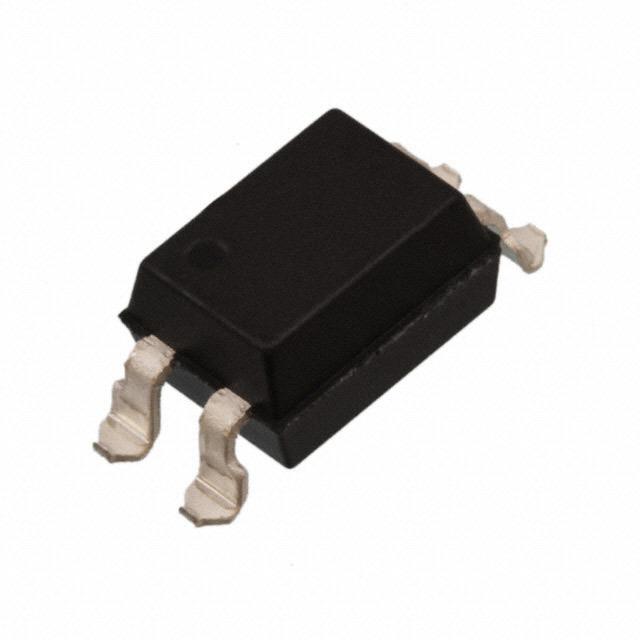

ISP814XSM

ISOCOM  ISP814XSM  光电耦合器, 晶体管输出, 交流输入, 1通道, 表面安装DIP, 4 引脚, 50 mA, 5.3 kV, 20 %

The is a 1-channel 4-pin high density mounting AC input Optically Coupled Isolator consists of two infrared light emitting diodes connected in inverse parallel and NPN silicon phototransistors. It is suitable for industrial systems controllers, signal transmission between systems of different potentials and impedances.

.

All electrical parameters 100% tested

.

±50mA Forward current

.

200mW Total power dissipation

.

AC or polarity insensitive input

.

5.3kVrms, 7.5kVpk high isolation voltage
