ADMC401BSTZ

ANALOG DEVICES  ADMC401BSTZ  芯片, 电机控制器, 基于数字信号处理, LQFP-144

The is a single-chip DSP-based high performance Motor Controller for control of AC induction motors ACIM, permanent magnet synchronous motors PMSM, brushless DC motors BDCM and switched reluctance SR motors in industrial applications. The ADMC401 integrates a 26 MIPS, fixed-point DSP core with a complete set of motor control peripherals that permits fast motor control in a highly integrated environment. The DSP core of the ADMC401 is the ADSP-2171 which is completely code compatible with the ADSP-21xx DSP family and combines three computational units, data address generators and a program sequencer. The computational units comprise an ALU, a multiplier/accumulator MAC and a barrel shifter. The DSP core also adds instructions for bit manipulation, squaring x2, biased rounding and global interrupt masking. In addition, two flexible double-buffered, bidirectional synchronous serial ports are included in the ADMC401.

.
26MIPS Fixed-point DSP core
.
Memory configuration
.
High resolution multichannel ADC
.
Three-phase 16-Bit PWM generation unit
.
Incremental encoder interface unit

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

ADMC401BSTZ PDF数据文档
图片 型号 厂商 下载
ADMC401BSTZ ADI 亚德诺

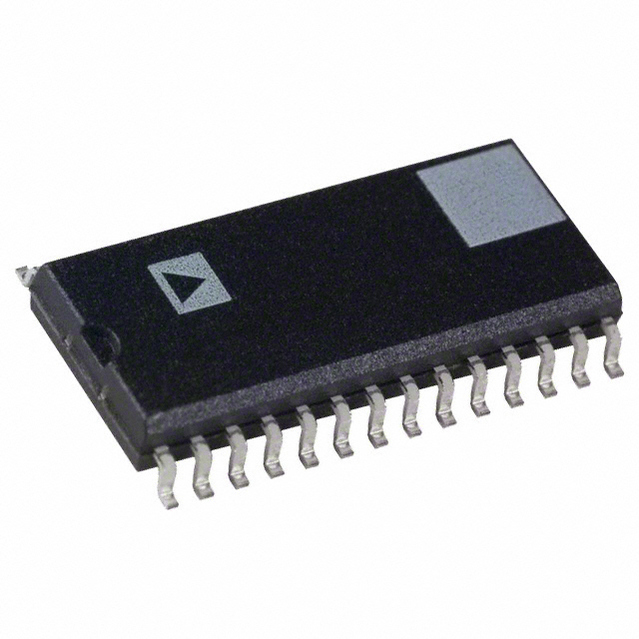

ADMCF326BR ADI 亚德诺
