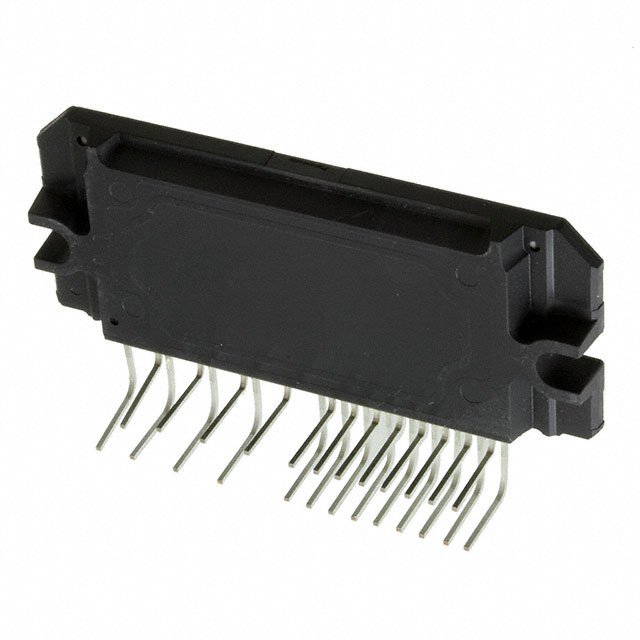

STK57FU394AG-E

智能功率模块 IPM, IGBT, 600 V, 15 A, 2000 Vrms, SIP

The from On Semiconductor is a 600V, 15A 2-in-1 PFC and inverter Intelligent Power Module IPM in 35 pin SIP package. The STK57FU394AG-E is a fully-integrated PFC and inverter power stage consisting of a high-voltage driver, six motor drive IGBTs, one PFC IGBT, one PFC rectifier and a thermistor suitable for driving permanent magnet synchronous PMSM motors, brushless-DC BLDC motors and AC asynchronous motors. The IGBTs are configured in a 3-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm. An internal comparator and reference connected to the over-current protection circuit allows the designer to set individual over-current protection levels for the PFC and the inverter stages. Additionally, the power stage has a full range of protection functions including cross conduction protection, external shutdown and under-voltage lockout functions.

.

Simple thermal design with PFC and inverter stage in one package
