7282-5SG-300

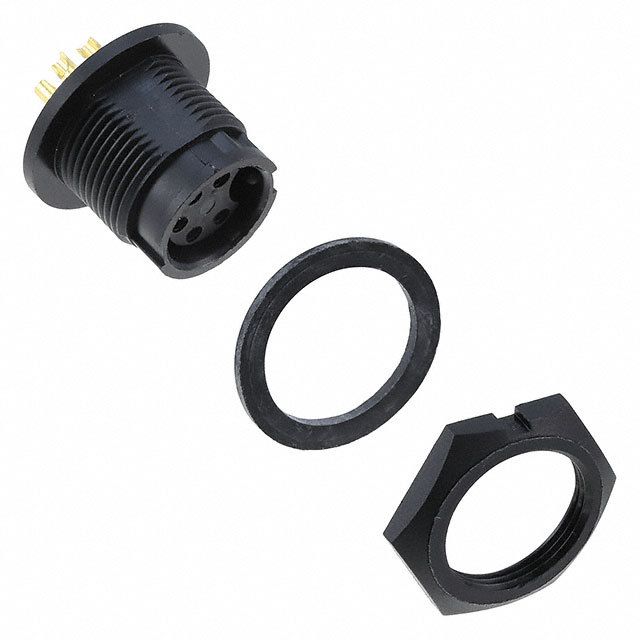

Conn Circular SKT 5POS Solder Cup ST Panel Mount 5 Terminal 1Port

MICRO-CON-X® Field Installable Connectors

Contact arrangements shown are wiring view of cable end pins/sockets. Key/Keyway shown for orientation only.

.

Available in Connector Types: Cable-End Socket, Panel-Mount Pin and Cable-to-Cable Pin-Styles Only.

* Provide Quality Solutions Requiring Interconnection in Harsh Environments

* 2-31 Contacts Available

* Applications Include, But Not Limited to, Marine, GPS Systems, Transportation, Etc.

* Ratings: 3.0 to 7.5 A, 600 V

* Contact Plating: Gold Over Nickel

* Mechanical Specifications: Minimum of 300 Mate/Unmate Cycles, Overriding Locking Feature on Coupling Ring to Prevent Vibration or Loosening, and an All Series Hex Nut to Withstand 1-12 inch/lb. Tightening Torque

* Environmental Specifications: Temperature: -55°C to +125°C -67°F to +257°F, Corrosion: 300 Hour Salt Spray Contacts

* With Hex Nut and Gasket
