74VCX16374G

低电压16位D型触发器与承受3.6V电压的输入和输出 Low Voltage 16-Bit D-Type Flip-Flop with 3.6V Tolerant Inputs and Outputs

General Description

The VCX16374 contains sixteen non-inverting D-type flip flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock CP and output enable OE are common to each byte and can be shorted together for full 16-bit operation.

Features

■1.65V–3.6V VCCsupply operation

■3.6V tolerant inputs and outputs

■tPD

   3.0 ns max for 3.0V to 3.6V VCC

   3.9 ns max for 2.3V to 2.7V VCC

   7.8 ns max for 1.65V to 1.95V VCC

■Power-off high impedance inputs and outputs

■Supports live insertion and withdrawal Note 1

■Static Drive IOH/IOL

   ±24 mA @ 3.0V VCC

   ±18 mA @ 2.3V VCC

   ±6 mA  @ 1.65V VCC

■Uses patented noise/EMI reduction circuitry

■Latch-up performance exceeds 300 mA

■ESD performance:

   Human body model >2000V

   Machine model >200V

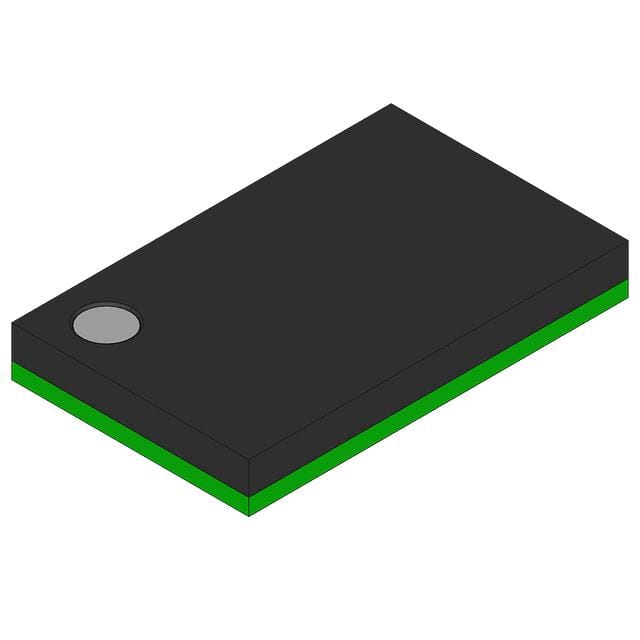

■Also packaged in plastic Fine-Pitch Ball Grid Array FBGA
