LTC4000EGN#PBF

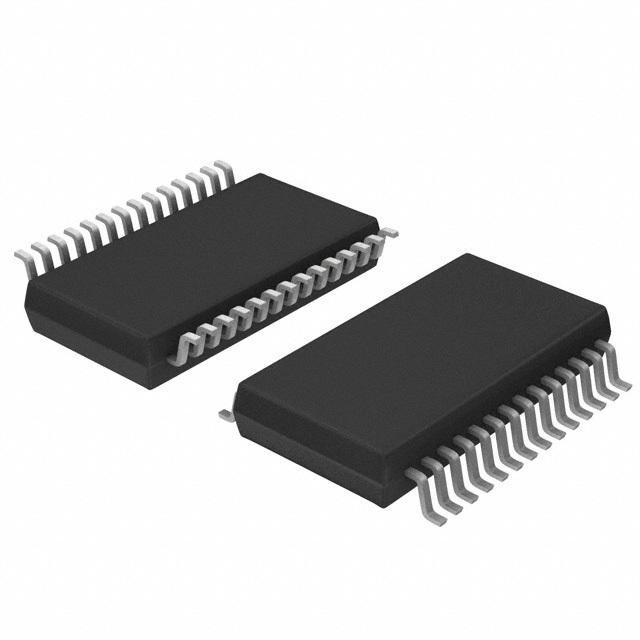

LINEAR TECHNOLOGY  LTC4000EGN#PBF  芯片, 控制器, 电池充电, 28SSOP

The is a high-performance High-voltage Controller for battery charging and power management. It converts many externally compensated DC/DC power supplies into full-featured battery chargers. The Battery charger features accurate ±0.25% programmable float voltage, selectable timer or current termination, temperature qualified charging using an NTC thermistor, automatic recharge, C/10 trickle charge for deeply discharged cells, bad battery detection and status indicator outputs. The battery charger also includes precision current sensing that allows lower sense voltages for high current applications. The LTC4000 supports intelligent PowerPath control. An external PFET provides low loss reverse current protection. Another external PFET provides low loss charging or discharging of the battery. This second PFET also facilitates an instant-on feature that provides immediate downstream system power even when connected to a heavily discharged or short faulted battery.

.

Complete high performance battery charger when paired with a DC/DC converter

.

Input ideal diode for low loss reverse blocking and load sharing

.

Output ideal diode for low loss PowerPath™ and load sharing with the battery

.

Instant-on operation with heavily discharged battery

.

±1% Accurate programmable input and charge current

.

±0.25% Accurate programmable float voltage

.

Programmable C/X or timer based charge termination

.

NTC input for temperature qualified charging
