SDE9PN

ITW MCMURDO  SDE9PN  连接器, D sub, 堆叠式, 90deg Turned Pin PCB D Sub系列, DE, 插头, 9 触点, 金属主体, 焊接

The 90deg Turned Pin PCB D Sub series Standard D-sub Connectors with standard fixing holes and 90° p.c termination. It has tinned and dimpled shell options for EMI/RFI shielding.

.
9, 15, 25, 37 and 50 Contact arrangement
.
Threaded inserts on 90° p.c. versions as standard-accepts a wide range of mounting hardware
.
Optional solderable boardlock features for 90° PC types-reduces installation time
.
500 Mating cycles
.
10mR Contact resistance maximum
.
1000MR Insulation resistance
.
-55 to 105°C Operating temperature

SDE9PN PDF数据文档
图片 型号 厂商 下载
SDE9PN Illinois Tool Works 伊利诺斯工具
SDE9SN Illinois Tool Works 伊利诺斯工具
SDE9S Illinois Tool Works 伊利诺斯工具
SDE9SNT Illinois Tool Works 伊利诺斯工具

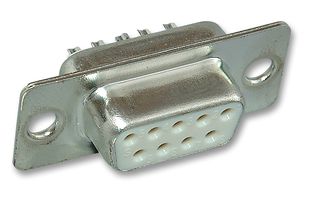

SDE9ST Illinois Tool Works 伊利诺斯工具
SDE9P Illinois Tool Works 伊利诺斯工具
SDE9PTD Illinois Tool Works 伊利诺斯工具
SDE9SOL Illinois Tool Works 伊利诺斯工具
SDE9POLTD Illinois Tool Works 伊利诺斯工具
SDE9SOLT Illinois Tool Works 伊利诺斯工具
SDE9POL Illinois Tool Works 伊利诺斯工具
