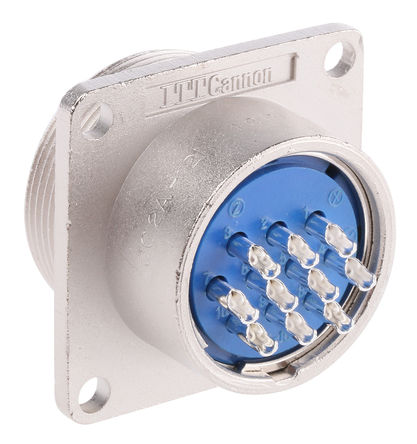

JC2A21-10P

JC2A 面板安装插座尺寸 --- **外壳尺寸** | **A** | **B** | **C** | **D** 13 | M18x1 | 16 | 20 | 26 16 | M22x1 | 20 | 23 | 29 21 | M26x1 | 24 | 26 | 32 25 | M30x1 | 28 | 29 | 35 ### ITT JC Range Metal### ITT JC Range - MetalDesigned in accordance with Japanese Industry Standard JIS-C-5432, the JC connector is rugged, lightweight and suitable for general purpose applications such as:Broadcast equipment Test and measurement equipment Medical equipment General industrial machinery Vending machines Available in 2 shell sizes and 4 contact arrangements All have thread coupling and key way polarisation to prevent misalignment when mating Operating Voltage | 250Vac ---|--- Contact Resistance | Insulation Resistance | >1000M Ω at 500Vdc Test Proof Voltage | 1000 V rms 1-min Shell Material | Nickel plated aluminium alloy Insulator Material | Blue thermosetting resin UL94V-0 Contact Material | Silver plated copper alloy Contact Termination | Solder Cable Conductor Diameter | Size 20 contact JC*A13-5, 16-10,21-16,25-24 - 0.5mm2 or smaller   | Size 16 contacts JC*A13-3, 16-7,21-10,25-16 - 1.25mm2 or smaller

JC2A 面板安装插座

### ITT JC Range - Metal

Designed in accordance with Japanese Industry Standard JIS-C-5432, the JC connector is rugged, lightweight and suitable for general purpose applications such as:

Broadcast equipment

Test and measurement equipment

Medical equipment

General industrial machinery

Vending machines

Available in 2 shell sizes and 4 contact arrangements

All have thread coupling and key way polarisation to prevent misalignment when mating
