C1-250SAB

COSINUS  C1-250SAB  十进制电容箱

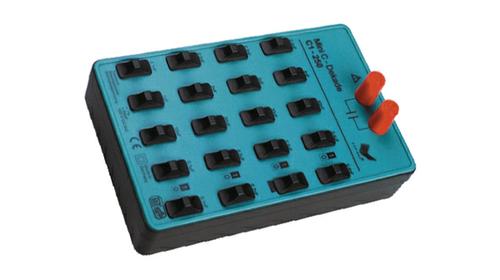

The is a Capacitance Decade renders capacitance values in a range of 5 decades 100pF to 11111 µF. A staggering of the capacitors in 1-2-3-4 steps allows an airtight adjustment by means of sliding switches. The tapped value equals the sum of the adjusted capacitance values. The capacitor is automatically discharged when the corresponding slide is switched-OFF. The supply is through 4mm safety sockets.

.

<75pF Residual capacitance

.

DIN EN ISO 61010 Part 1/A1

.

DIN EN ISO 61326 Part 1/A1
