LU29-41

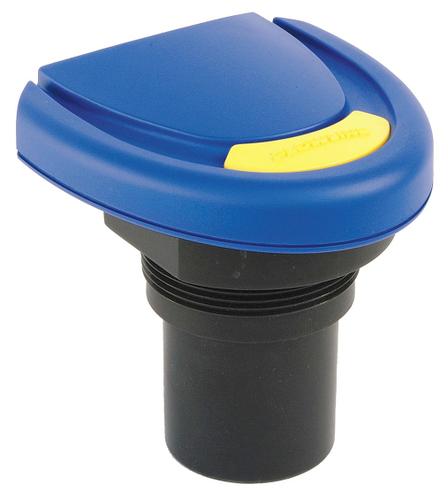

EchoSonic Level Transmitter, 10m 32.8', 2 NPT w/Fob

The general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8’ 10m LU29 is 10 m with a 4-20 mA signal output, and is configured via our free Webcal software. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications. Features

* Offered in 4 measurement ranges from 9.8’ 3m to 32.8’ 10m LU29 is 10 m

* DSP auto adaptive filters enable plug and play operation optimizing signal output filtering and obstacle recognition

* Configuration is fast and easy via WebCal software and USB adapter

* Narrow 2" or 3" beam width for applications with limited measurement space

* Short 4" or 8" dead band maximizes the measureable filling capacity of the tank

* PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids

* Automatic temperature compensation for accurate measurement
