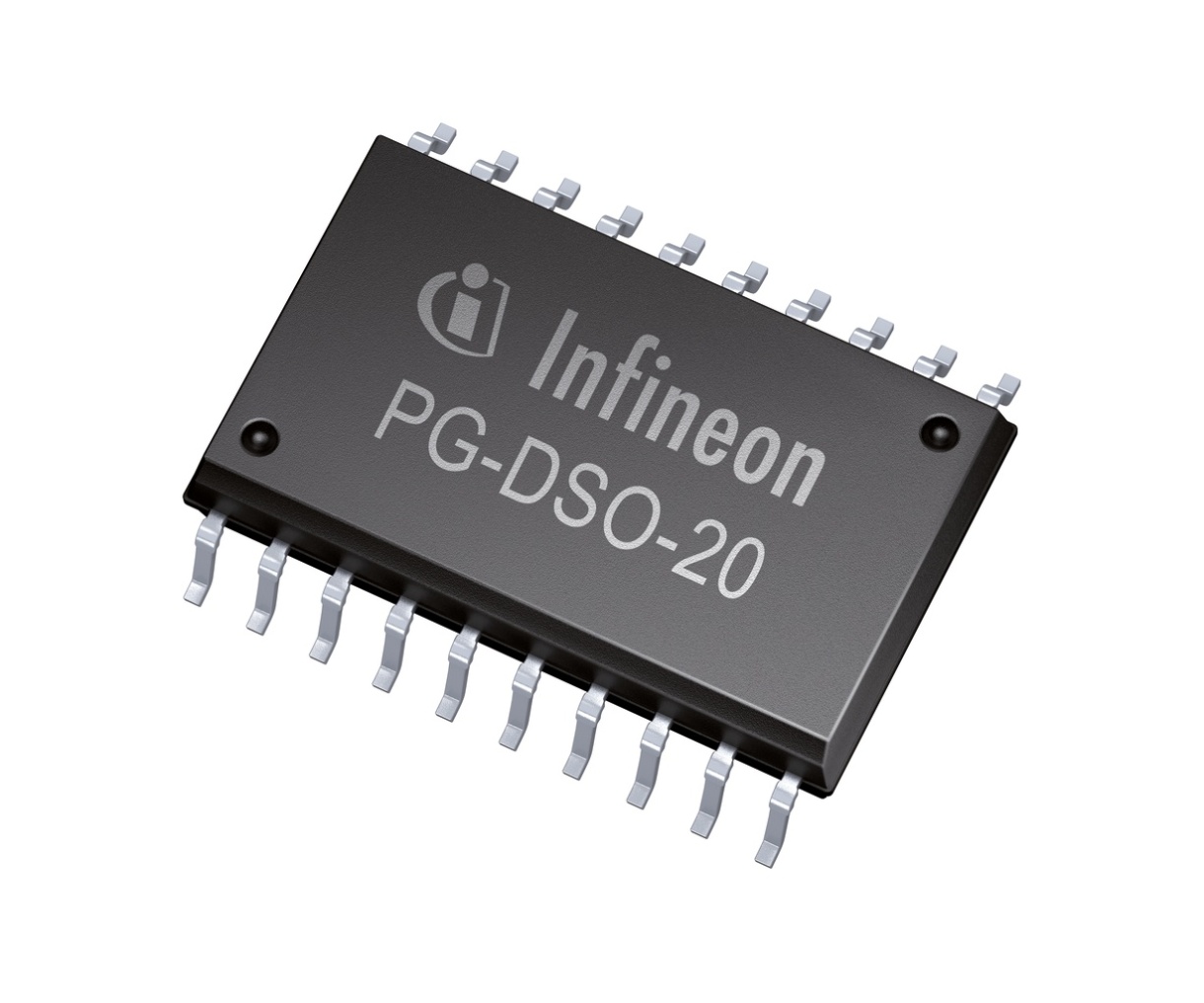

TLE8104E

650mΩ通态电阻,四通道,智能低边开关

Description:

Smart 4-channels Low-Side Switch in Smart Power Technology. The is designed for Powertrain applications and it"s equipped with a Serial Peripheral Interface SPI for control and diagnosis. All channels are protected against over-current/temperature and enhanced with an active clamping circuitry for driving inductive loads. Load status detection is possible over the SPI for: Short to GND SCG, Open Load OL, and Short to Battery SCB. 4 input pins are available for direct PWM control of the switches.

Summary of Features:

.

8-bit SPI

.

4x Direct Input Pins

.

Fault pin

.

Programmable Active-Low/High logic

.

Active Clamping

.

Diagnosis for SCG, OL and SCB

.

Over-Current Protection I-limit

.

Over-Temperature Protection

.

IC Over-Temperature Warning

.

Electrostatic Discharge ESD Protection

.

Low Quiescent Current Mode

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Inductive Load Clamping

.

Small Exposed Pad Package

.

Full Protection

.

Full Diagnosis

.

SPI communication
