Male BNC flange socketMale square flange socket for panel mounting. Mount using four screws not provided. Solder connection. Impedance: | 50 Ω ---|--- Recommended operating frequency: | 0 → 4 GHz R.O.S.: | 1.3 max. at 3 GHz Insertion losses: | 0.2 dB/m at 3 GHz H.F. leakages: | –55 dB min. 2 → 3 GHz Insulation resistance: | Min. 5000 MΩ Max. service voltage: | 1500 V eff. on the ground Endurance: | 500 operations Operating temperature: | –65 °C → +165 °C Mounting holes: | 4 x M 2.5 ### Radiall BNC 射频同轴连接器黄铜主体连接器，带 PTFE 绝缘体和镀金黄铜中心触点。 某些连接器可提供压接、夹固编织选件和隔板插座。 BNC 插头和隔板插座的商用系列散装供货，每包 100 个。 这些对于标准 Radiall 系列有不同规格。 参见下面技术规格表中的相关详情。**Radiall 标准系列** |   | **Radiall“商用”（散装）** |   ---|---|---|--- 工作电压 | 500V | 主体材料 | 压铸锌 耐电压 | 1.5KV | 主体镀层 | 镍 绝缘电阻 | 最小 5GΩ | 触点电阻 | 10mΩ 频率范围 | 直流 → 4GHz 50Ω 直流 → 1GHz 75Ω | 频率范围 | 直流 → 1.5 GHz 气候特征 | 40/155/21 |   |   中心冲击电阻 | 最大 2mΩ |   |   外部导体电阻 | 最大 0.2Ω |   |   压接工具 --- **电缆类型** | **使用压接工具 s** R58, RG59, RG174 | 848-391, 848-436 RG179 | 848-391 附加模具 282-3502 RG12 | 241-8380

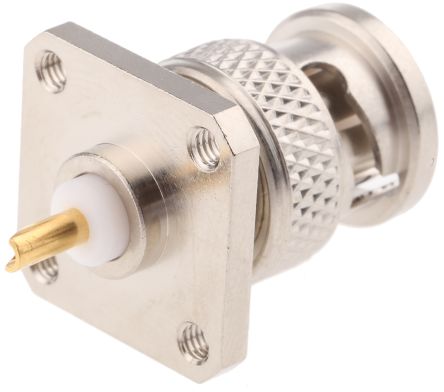

Male BNC flange socket

Male square flange socket for panel mounting.

Mount using four screws not provided.

Solder connection.

Impedance: | 50 Ω

---|---

Recommended operating frequency: | 0 → 4 GHz

R.O.S.: | 1.3 max. at 3 GHz

Insertion losses: | 0.2 dB/m at 3 GHz

H.F. leakages: | –55 dB min. 2 → 3 GHz

Insulation resistance: | Min. 5000 MΩ

Max. service voltage: | 1500 V eff. on the ground

Endurance: | 500 operations

Operating temperature: | –65 °C → +165 °C

Mounting holes: | 4 x M 2.5
