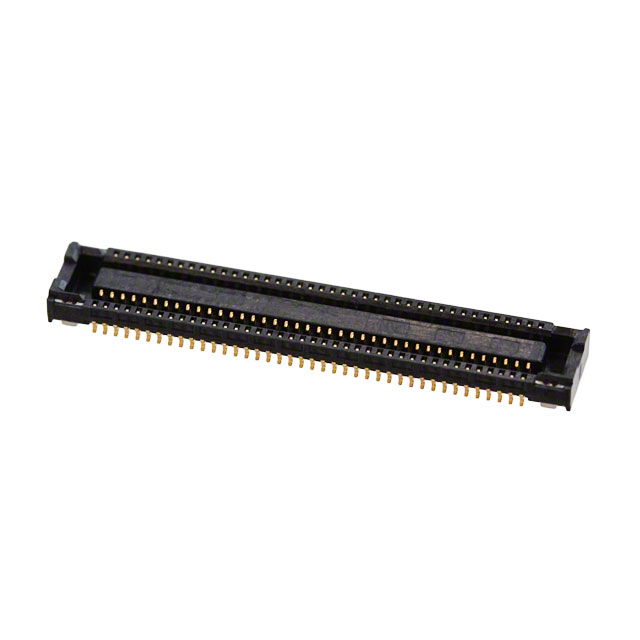

0.40毫米( 0.016 “ )间距板对板SlimStack ™插座,表面贴装,双排,垂直叠加,具有节省空间的J-弯信息, 80电路,无铅 0.40mm .016" Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical Stacking, with Space Saving J-Bend Leads, 80 Circuits, Lead-free

80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold


得捷:
CONN RCPT 80POS SMD GOLD


立创商城:
0513380874


艾睿:
As an added safety precaution, the board to board 0513380874 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 0.4 mm. This is a 2-row connector. This device has a maximum current rating of 0.3 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This connector has an operating temperature of -25 to 85 °C. This product is 19.1 mm long, 1.34 mm tall and 3.4 mm deep. 0513380874 is housed in black liquid crystal polymer. It uses the solder termination method.


安富利:
Conn Board to Board RCP 80 POS 0.4mm Solder ST SMD Embossed T/R


0513380874 PDF数据文档
图片 型号 厂商 下载
0513380874 Molex 莫仕
0513741073 Molex 莫仕
0513870530 Molex 莫仕
0513870578 Molex 莫仕
0513820200 Molex 莫仕
0513820300 Molex 莫仕
0513820500 Molex 莫仕
0513820400 Molex 莫仕
0513480213 Molex 莫仕
0513820600 Molex 莫仕
0513531000 Molex 莫仕
