FLUKE-1555/KIT

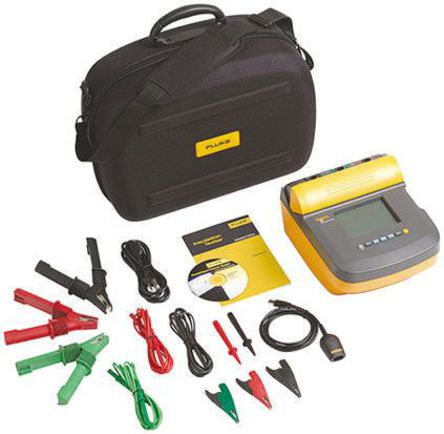

Fluke 1550、1555 5kV 和 10kV 绝缘测试仪高电压绝缘测试仪，特别适用于测试高电压设备，包括开关设备、电动机、发电机和电缆。 符合 IEEE 43-2000 标准要求 电容和泄漏电流测量 电阻测量高达 2TΩ Fluke 1555 斜坡功能，用于击穿测试 电压击穿检测警告和电压读数（高达 600 V 交流或直流），用于提高用户的安全性 可存储和调用 99 个测量值，提供 PC 接口 自动计算介电吸收 DAR 和极化指数 PI 定时器设置长达 99 分钟，用于定时测试 防护系统可消除表面泄漏电流对高阻抗测量的影响 大尺寸 LCD 显示屏，带模拟条形图 长寿命铅酸电池，两次充电之间可执行 750 多次测试 EN 61010 安全等级：IV 类 1000V，III 类 1000V 测试电压（直流） | 250V、500V、1kV、2.5kV、5kV 和 10kV（仅限于 Fluke 1555） 1mA 负载电流时为 -0% 和 +10% ---|--- 电阻测量 | 200kΩ → 100 GΩ: ± 5%,Fluke 1550 200kΩ → 200 GΩ: ± 5%,Fluke 1555 200GΩ → 1TΩ: ± 20% Fluke 1550 200GΩ → 2TΩ: ± 20% Fluke 1555 条形图范围 | 0 → 1 TΩ 泄漏电流测量 | 1 nA 至 2 mA ±5% + 2 nA 电容测量 | 0.01 μF 至 15.00 μF ± （15% 读数 + 0.03μF） 电容负载充电率 | 每 μF 5 秒 电容负载放电率 | 每 μF 1.55 秒 带电电路警告 | 30 V → 660V 交流/直流，50/60Hz ±15% + 2 V 功率 | 12V 铅酸可充电电池：内部市电供电充电器 尺寸与重量 | 269 x 277 x 160mm : 3.7kg ### 随附测试电缆和鳄鱼夹、红外线 USB 适配器、交流电源线、12V 铅酸电池（已配备）、FlukeView Forms 基础软件、用户手册光盘和软携带箱（仅限于 Fluke 1555） **Fluke 1550 和 1555 套件包括**：IP67 硬箱、NIST 可追踪校准证书和额外坚固耐用的鳄鱼夹### 闪光/高电位绝缘测试仪
** 1555 and 1550C Insulation Resistance Testers
Digital insulation testing up to 10 kV- .
- *
The new Fluke 1555 and redesigned Fluke 1550C insulation resistance testers, offer digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.
**
Features:- .
- *
* Test voltages to up 10 kV provides solutions for all applications
* CAT III 1000 V, CAT IV 600 V safety rating
* Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
* Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
* Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
* Long battery life gives the user over 750 tests between charges
* Automatic calculation of Dielectric Absorption DAR and Polarization Index PI with no additional setup
* Guard system eliminates the effect of surface leakage current on high-resistance measurements
* Large digital/analog LCD for easy viewing
* Capacitance and leakage current measurement
* Ramp function for breakdown testing
* Resistance measurements up to 2TΩ
* Timer settings up to 99 minutes for timed tests
* 3-year warranty
Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 and 1550C are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
