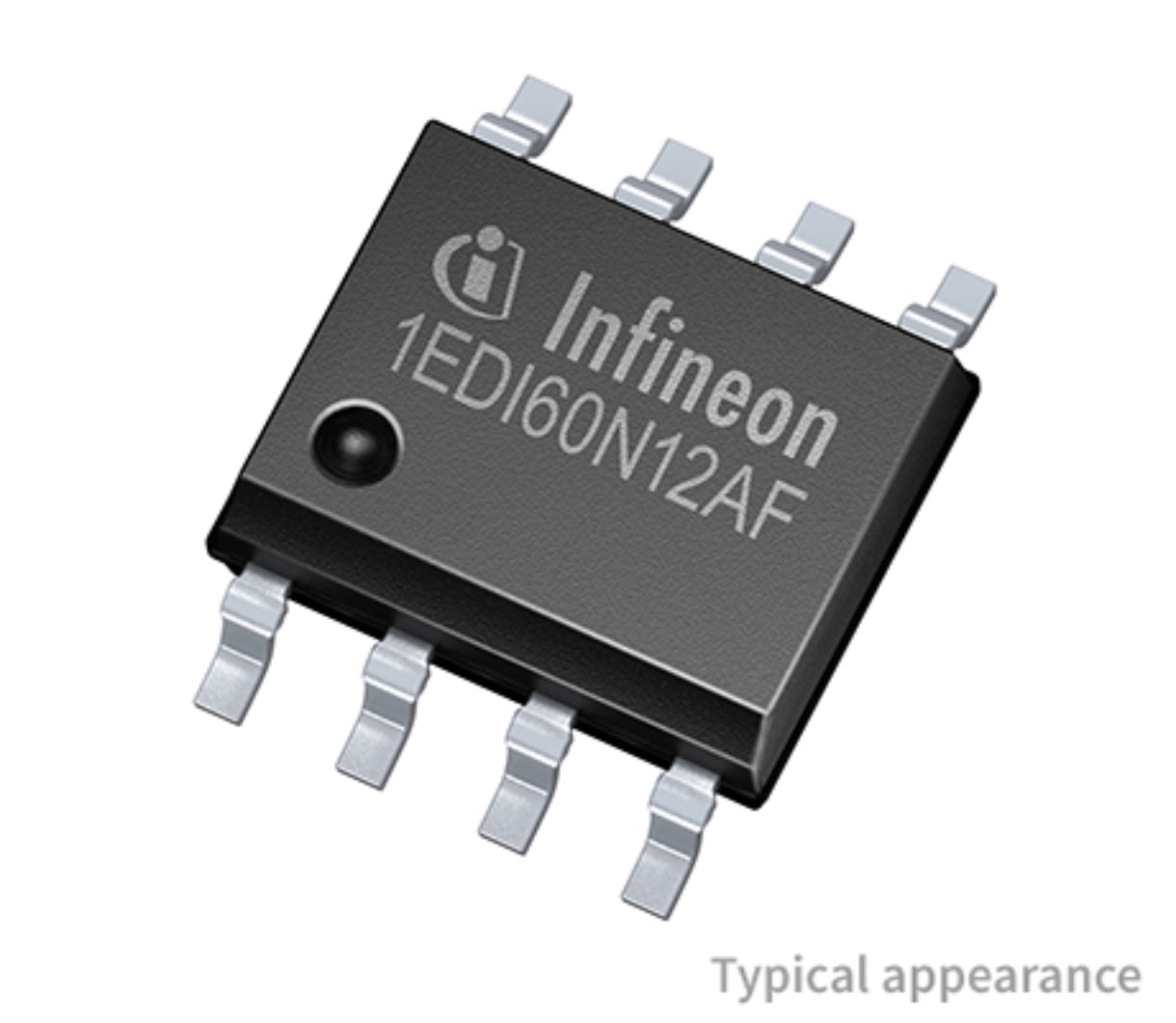

1EDI60N12AF

MOSFET DRVR 6A 1Out Hi Side Inv/Non-Inv 8Pin DSO T/R

Summary of Features:

.

Separate source/sink output Vsupply: 35V

.

Iout: 6A @ 15V

.

1200V Coreless Transformer IC with galvanic isolation

.

Prop. delay <105ns with 40ns input filter time

.

High CMTI robustness >100kV/µs

.

Separate source/sink output

.

Small package DSO-8 150mil

Benefits:

.

Tailored for all 650V CoolMOS™ C7, P6 and other super junction MOS transistors

.

High switching frequency applications as SMPS, up to 4MHz

.

Tune turn-off vs. turn-on

.

High reliability @ small footprint
