HLE-103-02-S-DV-BE-K-TR

.100 TIGER BEAM SOCKET ASSEMBLY

6 Position Receptacle, Bottom Entry Connector Surface Mount

欧时:
.100 Tiger Beam Cost-effective Single Be

得捷:
.100 TIGER BEAM SOCKET ASSEMBLY

艾睿:

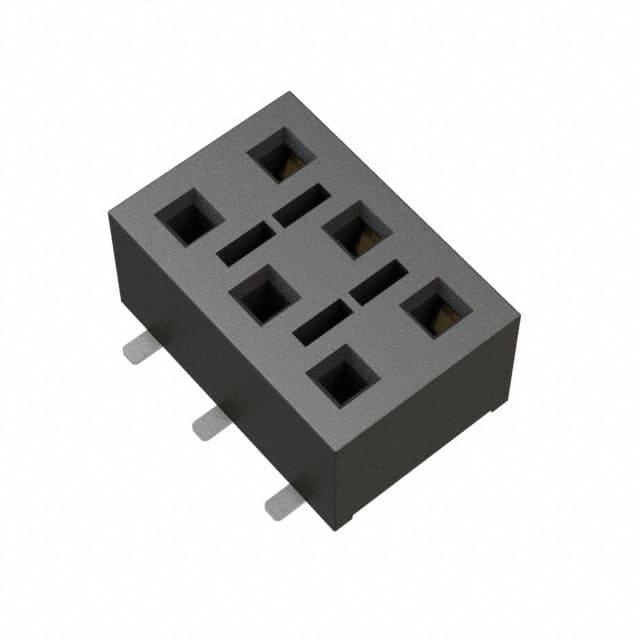

This socket strip HLE-103-02-S-DV-BE-K-TR header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This SKT connector&s;s 6 contacts that are made out of beryllium copper and plated with gold over nickel. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 4.1 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 7.62 mm long, 3.66 mm tall and 6.6 mm deep. HLE-103-02-S-DV-BE-K-TR is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.
