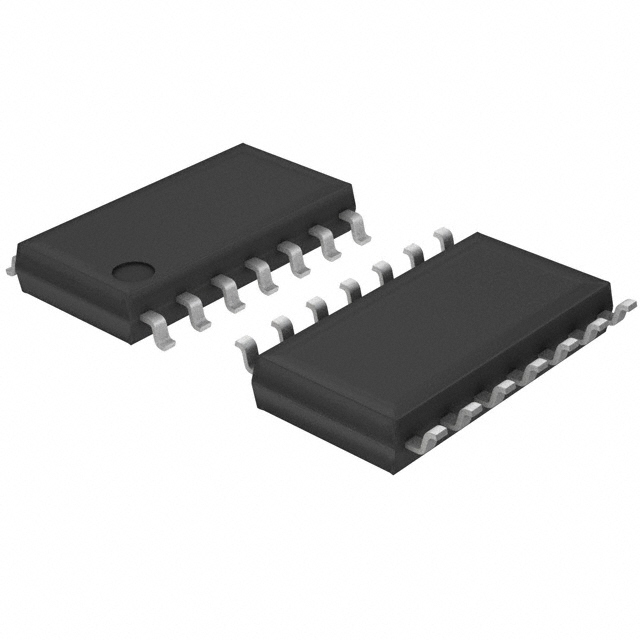

ADP3171JR

同步降压控制器，双路线性稳压控制器 Synchronous Buck Controller with Dual Linear Regulator Controllers

GENERAL DESCRIPTION

The ADP3171 is a highly efficient output synchronous buck switching regulator controller optimized for converting a 5 V main supply into the auxiliary supply voltages required by processors and chipsets. The ADP3171 provides a fixed output voltage of 1.2 V at up to 15 A, depending on the power ratings of the external MOSFETs and inductor. The ADP3171 uses a current-mode, constant off time architecture to drive two N-channel MOSFETs at a programmable switching frequency that can be optimized for regulator size and efficiency.

FEATURES

Fixed 1.2 V N-Channel Synchronous Buck Driver

Two On-Board Linear Regulator Controllers

Total Accuracy ±1% over Temperature

High Efficiency Current-Mode Operation

Short Circuit Protection

Power Good Output

Overvoltage Protection Crowbar Protects Switching Output with No Additional External Components

APPLICATIONS

Auxiliary System Supplies for Desktop

Computer Systems

General-Purpose Low Voltage Supplies
