3SU1102-0AB70-1BA0

22 mm 指示灯完整装置，塑料Siemens 极其坚固的 IP69K 完整高级塑料指示灯头，带集成 LED 和支座，提供各种颜色。 安装简便 适用于极端恶劣环境中 不需要特殊工具 简单的几何形状，用于安装孔 连接到最常用通信系统（PROFINET，AS-Interface，IO-Link） ### 认可IEC 60947-1，EN 60947-1 IEC 60947-5-1，EN 60947-5-1### Siemens Sirius Act 系列SIRIUS ACT 系列按钮和信号设备具有专门设计的多种按纽、指示灯和开关，智能、可靠且非常坚固。创新的扣入式概念让安装任务变得十分轻松，单手便可完成。 由纯金属和高级塑料制成，安装有智能功能和交互功能，这些最先进的按钮、指示灯和开关经在各种因素下的测试，可确保长使用寿命和各种操作下的可靠性。单手安装，无需特殊工具 组件可扣合，无需按住另一侧 可在倾斜位置安装 模块化概念 时尚的设计和优质材料 极其坚固且可靠 灵活通信 - AS-I、IO Link 和 Profinet

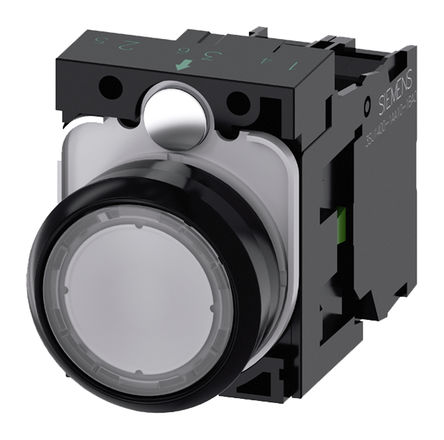

The from Siemens is a SIRIUS ACT 22mm illuminated pushbutton switch with flat button. It has clear colour round plastic actuating element, black colour standard plastic front ring and plastic holder. Contact reliability is one maloperation per 100 million 17V, 5mA, one maloperation per 10 million 5V, 1mA. It is approved by CCC, CSA, CE, UL and EAC standards. This switch has 3,000,000 mechanical service life switching cycles and 10,000,000 electrical endurance switching cycles. This switch features white LED light source with 900mcd to 1400mcd light intensity.

.

Momentary contact type, one contact module, silver alloy auxiliary contact, integrated LED

.

29.45mm actual element outer diameter, 24VAC/DC supply voltage at 50Hz/60Hz

.

Rated AC operating voltage range from 5V to 500V at 50Hz and 5V to 500V at 60Hz

.

Rated DC operating voltage range from 5V to 500V

.

1NO, screw type terminal, front mounting type

.

22.3mm mounting diameter, 11mm mounting height, 29.5mm installation width, 49.7mm installation depth

.

Rated insulation voltage of 320V and thermal current of 10A

.

Degree of pollution 3, IP66, IP67, IP69 IP69K, IP20, NEMA 1, 2, 3, 3R, 4, 4X and 12 ratings

.

4KV surge voltage resistance rated value and 3600 1/h maximum operating frequency

.

Operating temperature range from -25°C to 70°C and dimension is 40mm x 30mm H x W
