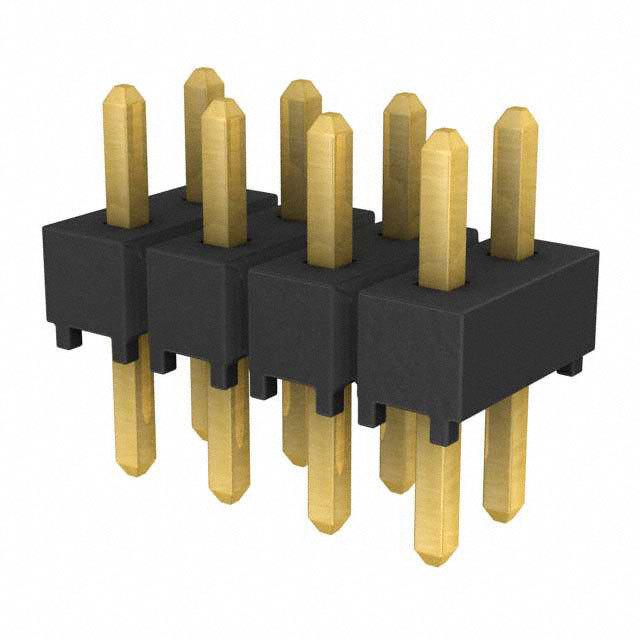

TSW-104-05-G-D

SAMTEC TSW-104-05-G-D Board-To-Board Connector, 2.54mm, 8Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 8 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 8POS 2.54MM

艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded TSW-104-05-G-D header connector from Samtec. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 10.16 mm long, 5.21 mm tall and 5.08 mm deep. TSW-104-05-G-D is housed in black polyester.

Newark:
# SAMTEC  TSW-104-05-G-D  Board-To-Board Connector, 2.54 mm, 8 Contacts, Header, TSW Series, Through Hole, 2 Rows
