RN4607

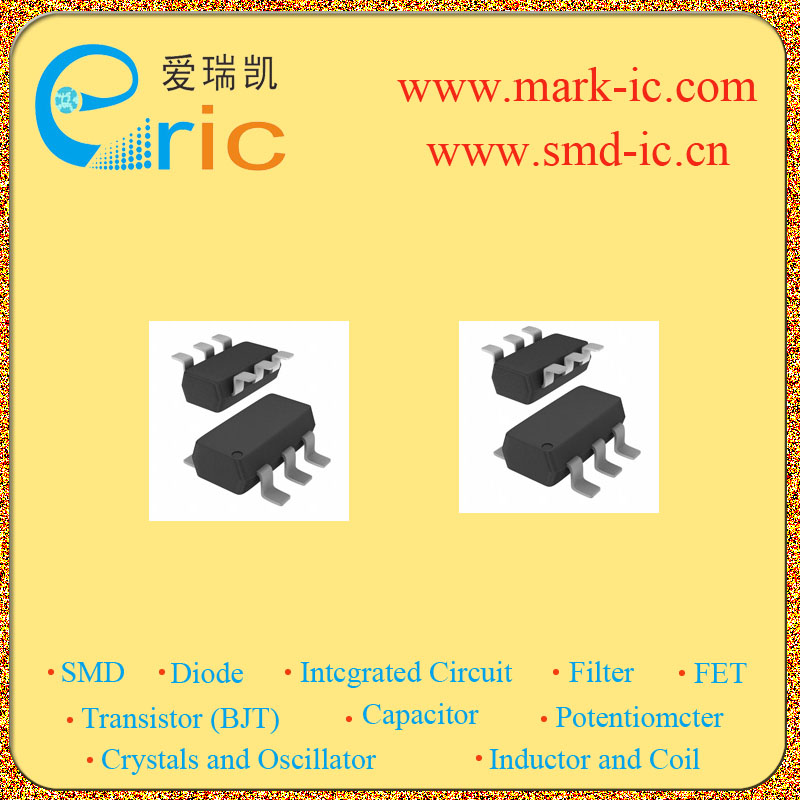

RN4607 带阻尼PNP+NPN 50V 0.1A R1=10KΩ R2=47KΩ SOT163 代码 VH

Q1 集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO | -50V \---|--- Q1集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO | -50V Q1集电极连续输出电流IC Collector CurrentIC | -0.1A Q2 集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO | 50V Q2集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO | 50V Q2集电极连续输出电流IC Collector CurrentIC | 0.1A Q1基极输入电阻R1 Input ResistanceR1 | 10KΩ Q1基极-发射极输入电阻R2 Base-Emitter ResistanceR2 | 47KΩ Q1电阻比R1/R2 Q1 Resistance Ratio | 0.213 Q2基极输入电阻R1 Input ResistanceR1 | 10KΩ Q2基极-发射极输入电阻R2 Base-Emitter ResistanceR2 | 47KΩ Q2电阻比R1/R2 Q2 Resistance Ratio | 0.213 直流电流增益hFE DC Current GainhFE Q1/Q2 | 80/80 截止频率fT Transtion FrequencyfT Q1/Q2 | 200MHZ/250MHZ 耗散功率Pc Power Dissipation | 0.3W Description & Applications | Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications

.

Including two devices in SM6 super mini type with 6 leads * With built-in bias resistors * Simplify circuit design * Reduce a quantity of parts and manufacturing process 描述与应用 | 　开关,逆变器电路,接口电路和驱动电路的应用 　　*包括两个设备SM6超级迷你类型与6领先 　　*内置偏置电阻 　　*简化电路设计 　　*减少数量的零部件和制造过程
