DF13-10S-1.25C

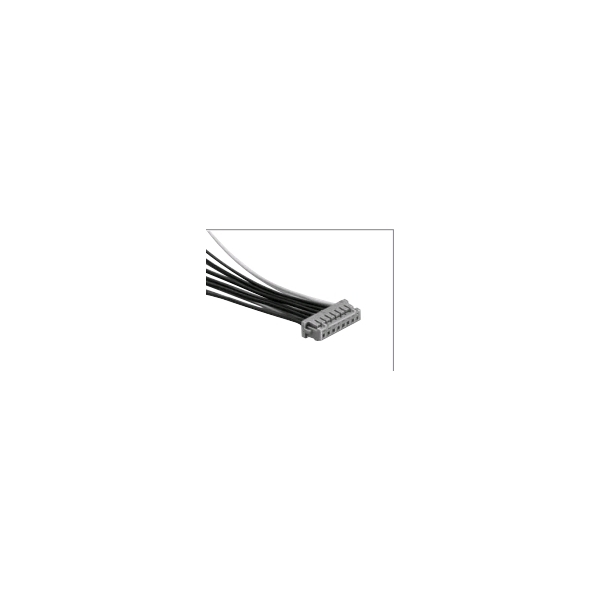

Hirose DF13 系列 1.25 mm 压接连接器外壳DF13 系列 1.25 mm 压接连接器外壳，采用小巧的紧凑型设计，提供单排和双排配置。 双排连接器采用紧凑型设计，与相同安装区域的单排型号相比，密度提高了 30%。 这些 DF13 系列连接器外壳具有极化插槽，可防止错误插入。 摩擦锁定机制可确保连接器外壳牢固地连接至配接管座。 这些 DF13 系列 1.25 mm 连接器外壳可与 DF13 系列 1.25 mm 印刷电路板管座连接器配接。 这些压接外壳的触点必须单独购买，通常需参见库存号 503-8325### 特点和优势紧凑节约空间的设计 与使用安装区域的单排配置相比，双排配置使密度提高了 30% 极化插槽，可防止错误插入 摩擦锁定机制，可确保牢固配接连接 ### 应用这些 DF13 系列 1.25 mm 压接连接器外壳特别适用于要求使用多个信号且节省空间的应用和便携式设备。 典型应用包括数码相机、LCD 显示屏、数字视频记录器、汽车导航、访问控制装置和测量设备。 ### 1.25mm 线到板 - Hirose DF13
1.25mm Pitch Miniature Crimping Connector
■Features
1\. Miniature Size
Designed in the low profile at mounting height 5.8mm.
SMT mounting straight type
For DIP type, the mounting height is to 5.3mm to the straight and 3.6mm at the right angle
2\. Multi-contact
The double row type achieves the multi-contact up to 40 contacts, and secures 30% higher density in the mounting area, compared with the single row type.
3\. Correspond to Automatic Mounting
The header provides the grade with the vacuum absorption area, and secures automatic mounting by the embossed tape packaging.
In addition, the tube packaging can be selected.
4\. Integral Basic Function Despite Miniature Size
The header is designed in a scoop-proof box structure, and completely prevents mis-insertion.
In addition, the surface mounting SMT header is equipped with the metal fitting to prevent solder peeling.
■Applications
Note PC, mobile terminal, miniature type business equipment, and other various consumer equipment, including video camera
